1617902511: SINGLE CHECK VALVE DN100

Optimizing a high-performance industrial compressed air system requires absolute precision, down to the smallest control component. The Atlas Copco 1617902511 Single Check Valve DN100 is a vital, high-integrity component specifically engineered for Atlas Copco desiccant air dryers. Designed to prevent backflow and maintain correct pressure differentials during purge and drying cycles, this check valve ensures your downstream air quality remains uncontaminated and your operations run seamlessly.

Technical Specifications

Parameter	Details
Product Name	SINGLE CHECK VALVE DN100
Part Number	1617902511
Application	Atlas Copco Desiccant Air Dryers
Nominal Diameter	DN100
Net Weight	2.5 kg
Dimensions (L × W × H)	170 mm × 170 mm × 80 mm
Country of Origin	Belgium (BE)
Tariff Code (HS Code)	8414900090
Pricing Reference	$200 (excl. VAT)

Unboxing and Physical Verification

When it comes to industrial parts, physical authenticity can be seen, felt, and verified immediately upon delivery. Having handled and supplied the Atlas Copco 1617902511 Single Check Valve DN100 directly to numerous engineering clients, our hands-on experience confirms its status as a genuine, top-tier industrial component.

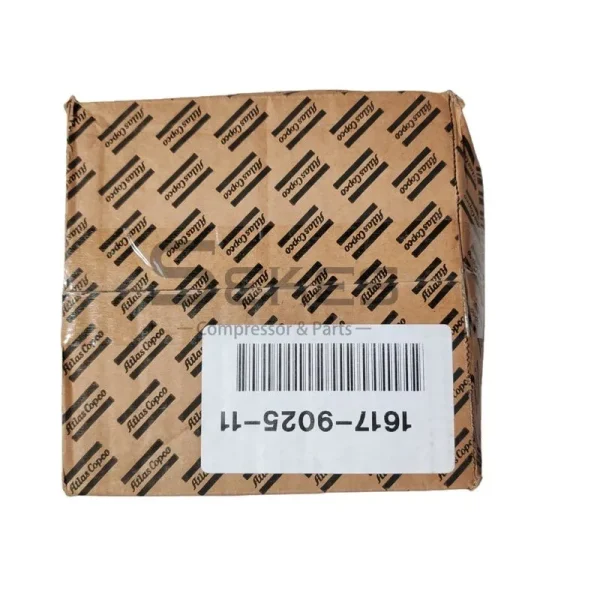

Every single unit arrives housed in official, heavy-duty Atlas Copco brand cardboard packaging, engineered specifically to protect the heavy 2.5 kg valve from impact and moisture during international transit. The exterior of the box features a highly visible, tamper-evident factory label displaying the unmistakable Atlas Copco brand logo alongside the unique 10-digit part number: 1617902511.

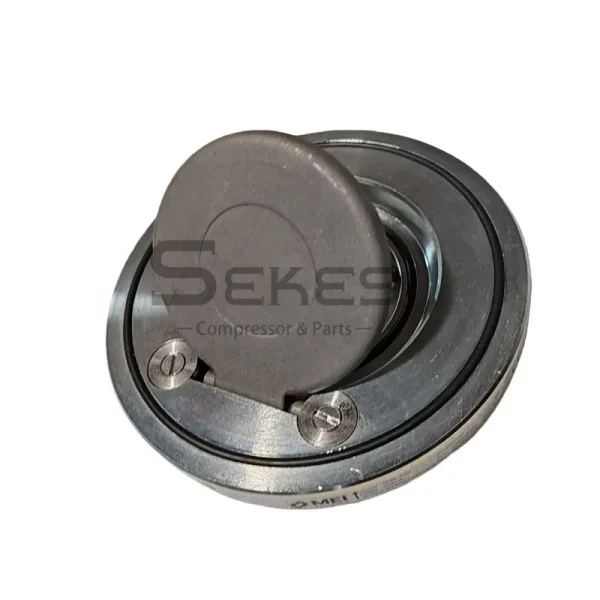

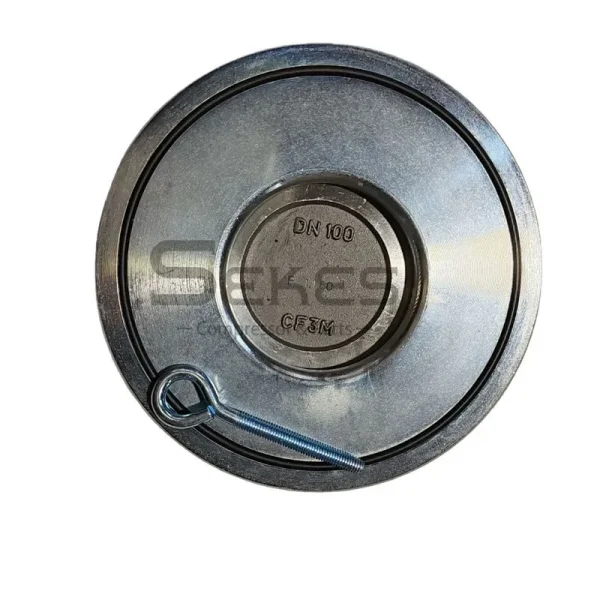

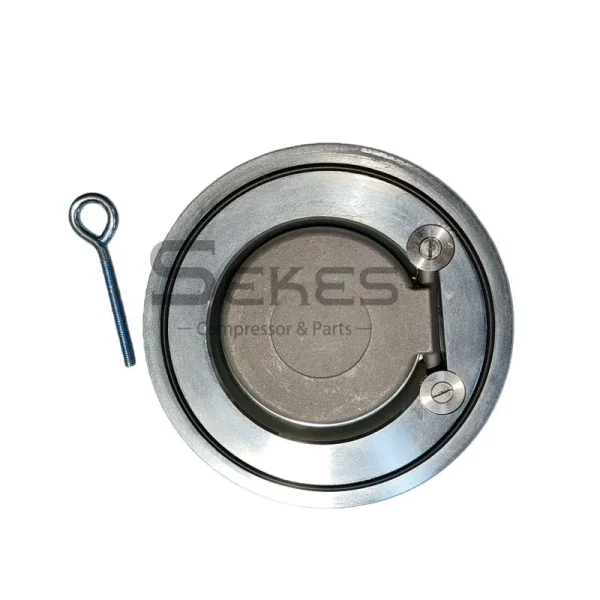

Upon unboxing, the physical build quality is immediately apparent. The DN100-sized cast housing features precision machining, crisp sealing surfaces, and the robust internal spring tension required for industrial desiccant dryer environments. There are no raw casting defects or ambiguous markings—our strict quality control checks and personal handling confirm that this item is a brand-new, 100% genuine factory original.

Operational Role, Maintenance, and Troubleshooting

1. Function and Role in Desiccant Dryers

In an adsorption air dryer, managing the directional flow of highly pressurized compressed air is a continuous, alternating process. As one tower adsorbs moisture under pressure, the other tower undergoes regeneration using dry purge air. The Single Check Valve DN100 (1617902511) acts as a reliable mechanical guardian. It permits unrestricted forward flow while instantly sealing shut against any reverse flow or cross-tower pressure back-surges.

Because it handles a large volume (DN100 nominal diameter), it ensures minimal pressure drop across the dryer system, which directly contributes to lowering overall energy consumption.

2. Step-by-Step Replacement Protocol

Replacing a large-diameter check valve requires adherence to strict industrial safety standards to avoid severe injury from residual pressure. Follow these professional maintenance steps:

System Isolation & Depressurization: Completely power down the air compressor and desiccant dryer system. Isolate the dryer from the main air distribution line. Vent all internal pressure from both desiccant towers until the pressure gauges read exactly 0 bar.

Disassembly: Loosen the flange bolts securing the old DN100 valve body. Carefully remove the worn valve and extract the old flange gaskets.

Inspection & Cleaning: Inspect the mating pipe flanges for corrosion or particulate build-up. Clean the seating areas thoroughly.

Installation orientation: Verify the flow direction arrow stamped onto the body of the new 1617902511 valve. Ensure this arrow aligns perfectly with the operational flow direction of the dryer.

Securing the Valve: Insert new original gaskets. Reinstall the flange bolts and tighten them progressively in a cross-pattern (star method) using a torque wrench to ensure uniform sealing pressure.

Leak Testing: Slowly pressurize the system, check for audible air leaks, and apply a soap bubble test around the flanges to guarantee total sealing integrity.

3. Common Troubleshooting Scenarios

Air Backflow & Dew Point Spikes: If the internal valve seat accumulates desiccant dust or suffers from spring fatigue, it may fail to close completely. This causes damp air to leak into the dry stream, leading to a sudden rise in the downstream pressure dew point.

Excessive Pressure Drop: If the valve disk becomes stuck in a semi-closed position due to varnish build-up or mechanical blockage, it creates a severe restriction, causing a noticeable drop in operating pressure downstream.

Chattering Noise: Rapid mechanical clicking or chattering often signals turbulent airflow or fluctuating pressures upstream, which warrants checking the regeneration valve timing cycles on the dryer’s controller.

The Legacy of Atlas Copco

Choosing Atlas Copco means investing in over a century of industrial engineering leadership. Founded in 1873, Atlas Copco has established itself as the global gold standard in compressed air technology, renowned for pioneering energy-efficient, reliable solutions across manufacturing, automotive, electronics, and heavy industry.

Atlas Copco’s desiccant dryers and components are engineered to withstand extreme pressures and continuous operations. By choosing genuine parts like the 1617902511 Single Check Valve, you are tapping into an advanced ecosystem of materials science, rigorous factory testing, and precise dimensional tolerances. Genuine parts preserve the structural integrity of your machinery, reduce unexpected downtime, and keep your production lines aligned with global efficiency standards.

ACD – Your Premier Air Compressor System Partner

We are a professional, one-stop supplier dedicated entirely to the distribution and maintenance of Atlas Copco air compressor systems. With over 10 years of extensive sales, technical auditing, and maintenance experience, our company delivers exceptionally reliable, cost-effective pre-sales and after-sales solutions to industrial users worldwide.

We are a dedicated supplier serving global industrial clients who value reliability and authenticity. We understand that in heavy industry, counterfeit or sub-par parts lead to catastrophic line stoppages and expensive equipment damage. Therefore, we focus exclusively on delivering genuine, brand-new products together with reliable service, supporting customers in maintaining stable and efficient compressed air systems worldwide.

As an authorized, trusted source, we supply this exact Atlas Copco Check Valve 1617902511 procured directly from Atlas Copco (Shanghai) Trading Co., Ltd. It is guaranteed to be a brand-new, factory-original part originating from the manufacturer’s premium production facilities in Belgium. Our ultimate corporate vision is to become a globally trusted one-stop supplier of Atlas Copco air compressor systems, recognized everywhere for genuine products, professional service, and long-term partnership value.

Contact Us Today!

Don’t let a worn valve compromise your air purity, damage your desiccant beds, or drive up your energy bills. Protect your investment with a brand-new, original Atlas Copco 1617902511 Single Check Valve DN100.

Our team at ACD has this genuine part in stock and ready for immediate worldwide dispatch. Contact our technical sales experts right now to request an official quote, confirm shipping logistics to your facility, or discuss bulk-order discounts. Let’s work together to keep your operations running smoothly!
