3002605770 (=1094805800): OSE KIT

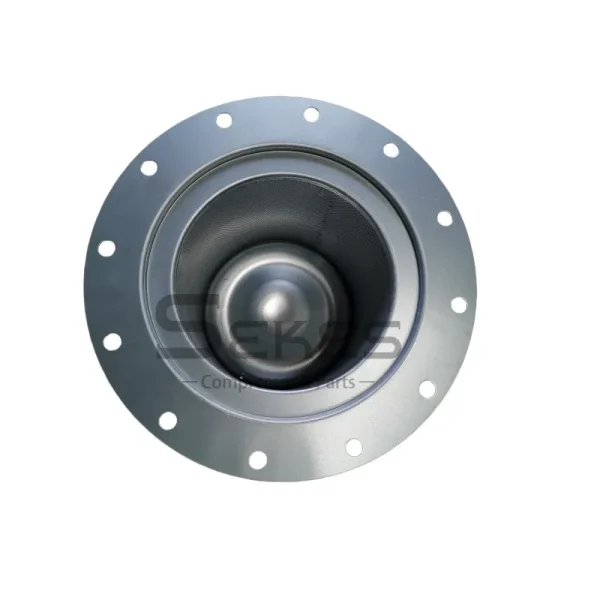

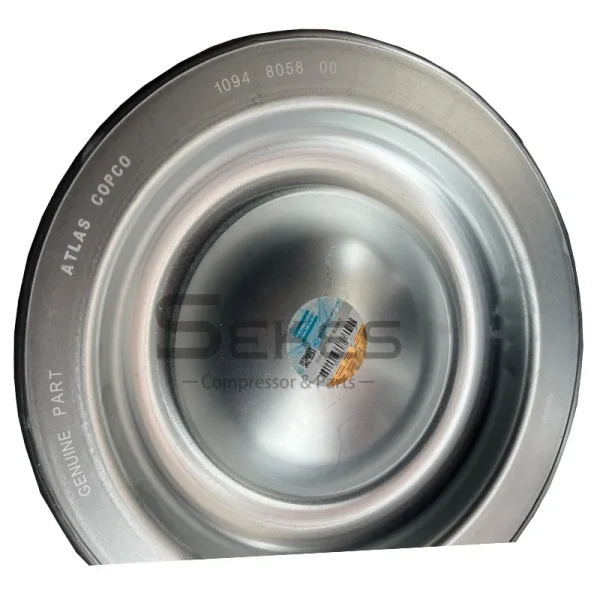

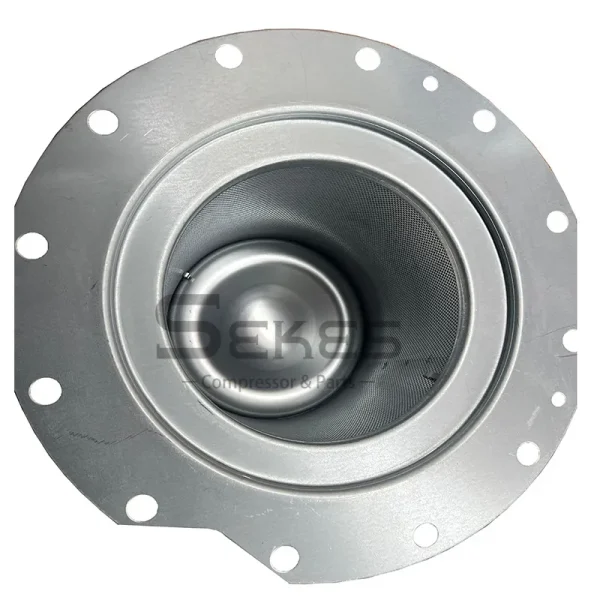

We supply the 3002605770 (=1094805800) OSE Kit, a 100% genuine original part sourced directly from Atlas Copco (Shanghai) Trading Co., Ltd. This kit serves as the direct replacement for the oil separator element in Atlas Copco oil-injected screw compressors. By choosing our genuine kit, you protect your rotary screw equipment from dust, carbon deposits, and premature wear, ensuring maximum service life for your compressor.

Product Overview

The OSE Kit (Oil Separation Element Kit) is the core filtration heart for your Atlas Copco air compressor. This kit effectively reduces the oil carry-over rate to less than 3 mg/m³. We supply this original unit to guarantee that your compressed air system operates at peak efficiency, minimizing pressure drop and saving energy costs over aftermarket alternatives.

Technical Specifications

Below is the complete specification list for the 3002605770 OSE Kit:

Components

Installation Steps

Follow these steps to install the 3002605770 OSE Kit properly. Ensure the compressor is shut down and fully depressurized before starting.

• Preparation: Remove the old separator cover bolts. Lift the cover carefully using the designated lifting eyes.
• Removal: Take out the old oil separator element. Clean the gasket surface inside the housing thoroughly. Remove any rust or debris.
• Replacement: Place the new O-ring from the kit into the groove. Install the new Packed OSE (1094805800) onto the center tube.
• Torquing: Replace the cover and tighten the Jacking Bolts (included) in a crosswise pattern to the manufacturer’s recommended torque.
• Final Check: Run the compressor briefly and check for oil leaks around the gasket area.

FAQs

Q1: Is this kit “Original” or “OEM”?
A: This is an Original Atlas Copco part. We source the 3002605770 kit strictly from Atlas Copco (Shanghai) Trading Co., Ltd. , ensuring 100% authenticity and warranty compliance for your compressor.

Q2: Which compressor models use this 3002605770 kit?
A: This kit is designed for Atlas Copco oil-injected screw compressors, including the GA series (such as GA 90, GA 110, GA 132) and GX series. It contains the critical Packed OSE 1094805800.

Q3: What is the expected oil carry-over rate?
A: The genuine Packed OSE (1094805800) guarantees an oil carry-over rate of less than 3 mg/m³. This keeps your pipework clean and protects your downstream tools.

Q4: Why does the weight matter (12.7 kg)?
A: The weight indicates the density and quality of the filtration media. A lighter, cheaper filter might lack the internal surface area required to coalesce oil mist effectively.

Q5: Can I replace just the O-ring and not the separator?
A: No. You must replace the entire unit. The service kit includes 2 O-rings and the Packed OSE (1094805800) as a set. Reusing old separators leads to high pressure drop and increased energy bills.
