ZH⁺ & ZH 355-1400 Oil-free Centrifugal Compressors
$30,000.00
High-efficiency Atlas Copco ZH⁺ & ZH 355-1400 Oil-free Centrifugal Compressors. Engineered using innovative in-house technology, the ZH centrifugal air compressor is the result of years of experience in the design of oil-free air compressor
Capacity FAD l/s
1,272 l/s - 9,790 l/s
Capacity FAD
4,579 m³/h - 35,244 m³/h
Capacity FAD m³/min
76 m³/min - 587 m³/min
Working Pressure
2.5 bar(g) - 13 bar(g)
Installed motor power
355 kW - 3,150 kW
Country of Origin
CN
Lead Time
12-16 Weeks
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
High-efficiency Atlas Copco ZH⁺ & ZH 355-1400 Oil-free Centrifugal Compressors. Engineered using innovative in-house technology, the ZH centrifugal air compressor is the result of years of experience in the design of oil-free air compressor
ZH+ & ZH range: high efficiency & reliability
Engineered using innovative in-house technology, the ZH+ and ZH range captures years of experience in advanced compressed air solutions to save energy and guarantee reliability of oil-free air supply in multiple environments.
 |
Driving down energy costsSuperior oil-free turbo air ends provide the optimum combination of a high flow with low energy consumption. Ample sized cooling, low pressure drops and an efficient drive train result in high compressor package efficiency. Further energy savings are possible with Atlas Copco’s heat of compression MD, ND and XD dryers. Assuring your peace of mindFrom the factory to the field, Atlas Copco has the expertise and products, service and support to meet customer demands. Through interaction and dedicated service during all stages of the process, Atlas Copco has accomplished a broad customer base around the world. Hundreds of thousands of unfailing running hours give proof of our long-term local and global service and support commitment to engineering companies and contractors as well as end customers. Keeping your production up and runningZH+ & ZH compressors are built using strict codes of Quality Control, and are designed, manufactured and tested in ISO 9001 accredited production facilities.They use Atlas Copco’s proven, superior turbo technology and over-sized cooling for the highest efficiency and reliability, AGMA class A4/ISO 1328 class 4 gears for low noise and vibrations, high-grade stainless steel coolers for very long lifetime, and an integrated lubrication system. The result is the highest reliability you need. |
ZH⁺ & ZH 355-800
| 1.Completely packaged solution
• All-in-one standard package incorporating the latest technology in a built-to-last design. |
2.Efficient inlet silencer and filter
• Inlet filter is combined with a silencer to reduce noise level and protect the compression stage. |
| 3.Integrated blow-off valve and silencer
• No external air, no additional piping and no additional mounting required. |
4.Mounted cooling water manifold
• Cooling water distribution to intercoolers, aftercooler and oil cooler. |
| 5.Small footprint
• Lowest footprint on the market in their range. |
6.Sound attenuating enclosure
Ensures optimal working conditions for everyone in the immediate environment |
| 7.Energy saving inlet guide vanes
• Smart and efficient capacity control. |
8.Easily accessible gearbox
• Horizontally-split, easing access to gears and high/low speed bearings. |
| 9.High efficiency intercoolers and aftercoolers
• Low air approach temperature and pressure drop. |
10.Complete oil system with oil reservoir, breathing system and auxiliary oil pump
• Fully equipped oil reservoir with temperature sensor and level sight glass. |
| 11.Motor
• High-efficiency main motor. |

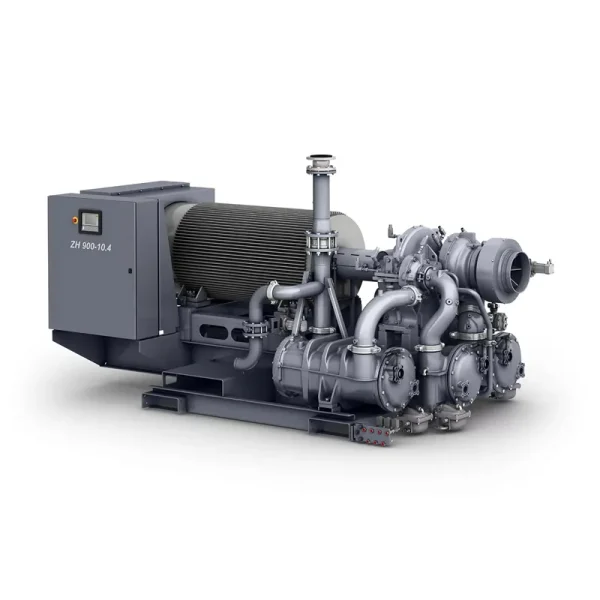

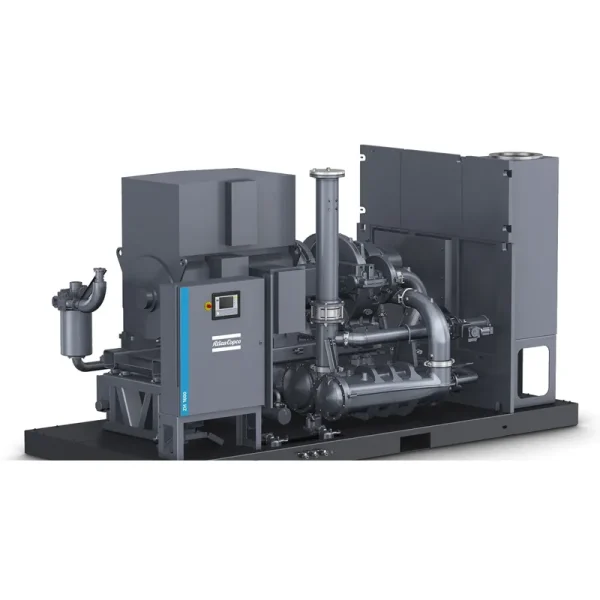

ZH⁺ & ZH 630-1400
| 1.Plug-and-play packaged solution
• All-in-one solution: fault-free installation, easy commissioning and quick start-up. |
2.Efficient inlet filter and silencer
• Protects the compression stages and reduces the noise level. |
| 3.On skid blow-off valve and silencer
• No additional piping or mounting, no external air required. |
4.Easy to connect cooling water manifold
• One connection serves intercoolers, aftercooler, oil cooler and main motor. |
| 5.Small footprint
• Highest ratio flow/footprint on the market. |
6.Sound attenuating enclosure
Reduces noise related stress on anyone working in the immediate environment |
| 7.Intelligent Inlet Guide Vanes controls
• Accurate servo-motor-driven positioning ensures stable behavior even under agile compressed air demands and large turndowns. |
8.Easy preventive maintenance access
• Horizontally-split gearbox, with quick access to major rotating components. |
| 9.Compact state-of-the-art coolers
• Separately mounted for increased reliability and easier maintenance. |
 |
| 10.On board full oil lubrication system
• Includes oil reservoir with heater, temperature monitoring and level sight glass. |
11.Silent care-free high efficiency main motor
• Air and water-cooled (IP55) variant. |
A dryer solution for every need
Untreated compressed air contains moisture and possibly dirt particles that can damage your air system and contaminate your end product. The resulting maintenance costs far exceed air treatment costs. Atlas Copco believes in effective prevention and provides a complete range of air treatment solutions to protect investments, equipment, production processes and end products.
Heat of compression reactivated adsorption dryers |
Rotary drum heat of compression dryers |
||
| XD-G | XD-S | ND | MD |
| -70°C/-40°C/-20°C -94°F/-40°F/-4°F |
-20°C/+3°C -4°F/+37°F |
-40°C/-20°C -40°F/-4°F |
-20°C/+3°C -4°F/+37°F |
| • Use of freely available heat of compression. • Limited pressure drop. • Variants for dew point suppression and guaranteed dew point. • Variants without loss of compressed air. |
• Use of freely available heat of compression. • Negligible power consumption. • Variants with extra heat augmentation for lower dew points. |
||
Heat reactivated adsorption dryer |
Refrigerant dryer |
||
| BD | FD/FD+(VSD) | ||
| -70°C/-40°C/-20°C -94°F/-40°F/-4°F |
+3°C/+20°C +37°F/+68°F |
||
| • Use of electrical heaters for regenerating the desiccant. • Limited pressure drop. • Variants without loss of compressed air. |
• Use of cooling circuit for cooling down compressed air. • Guaranteed pressure dew points. • Lowest energy consumption in all operating conditions. • Air and water cooled variants. |
Technical Specifications
ZH⁺ 355-1120 Technical Specifications
| Type | Weight (kg) | Dimensions | ||
| 2-Stage | Length | Width | Height | |
| ZH 355⁺ | 10,600 | 5550 | 2350 | 2575 |
| ZH 400⁺ | ||||
| ZH 450⁺ | ||||
| ZH 500⁺ | ||||
| ZH 560⁺ | ||||
| ZH 630⁺ | ||||
| ZH 700⁺ | ||||
| ZH 800⁺ | ||||
ZH 355-1120 Technical Specifications
| Type | Weight (kg) | Dimensions | ||
| 2-Stage | Length | Width | Height | |
| ZH 355 | 9,916 | 4660 | 2350 | 2575 |
| ZH 400 | ||||
| ZH 450 | ||||
| ZH 500 | ||||
| ZH 560 | ||||
| ZH 630 | ||||
| ZH 700 | ||||
| ZH 800 | ||||

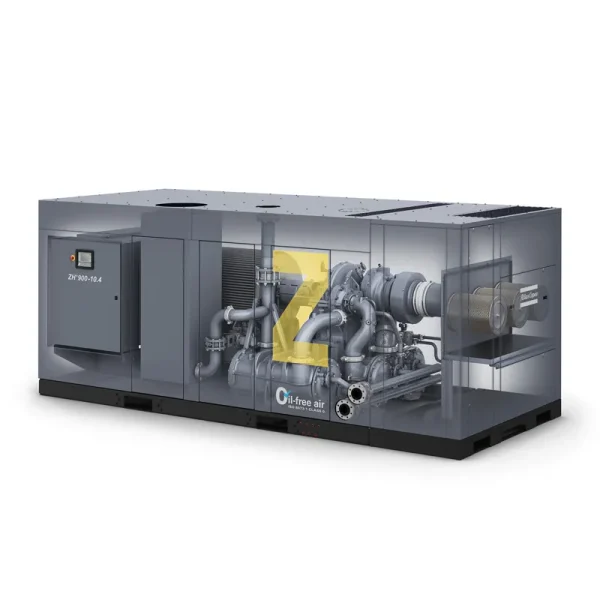

ZH⁺ 630-1400 Technical Specifications
| Type | Weight (kg) | Dimensions | ||
| 2-Stage | Length | Width | Height | |
| ZH 630⁺ | 13,930 | 6300 | 2350 | 3600 |
| ZH 710⁺ | ||||
| ZH 800⁺ | ||||
| ZH 900⁺ | ||||
| ZH 1000⁺ | ||||
| ZH 1120⁺ | ||||
| ZH 1250⁺ | ||||
| ZH 1400⁺ | ||||
ZH 630-1400 Technical Specifications
| Type | Weight (kg) | Dimensions | ||
| 2-Stage | Length | Width | Height | |
| ZH 630 | 13,011 | 5550 | 2150 | 3600 |
| ZH 710 | ||||
| ZH 800 | ||||
| ZH 900 | ||||
| ZH 1000 | ||||
| ZH 1120 | ||||
| ZH 1250 | ||||
| ZH 1400 | ||||
Inquiry Now
| Weight | 9916.00 kg |
|---|---|
| Dimensions | 460 × 235 × 257.5 cm |
| Capacity FAD l/s | 1,272 l/s – 9,790 l/s |
| Capacity FAD | 4,579 m³/h – 35,244 m³/h |
| Capacity FAD m³/min | 76 m³/min – 587 m³/min |
| Working Pressure | 2.5 bar(g) – 13 bar(g) |
| Installed motor power | 355 kW – 3,150 kW |
| Country of Origin | CN |
| Lead Time | 12-16 Weeks |
| MOQ | 1 Unit |
| Packaging | Wooden Crate |
| Product Quality | 100% Genuine, 100% Original, Brand New |
| Transaction Mode | CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA |
