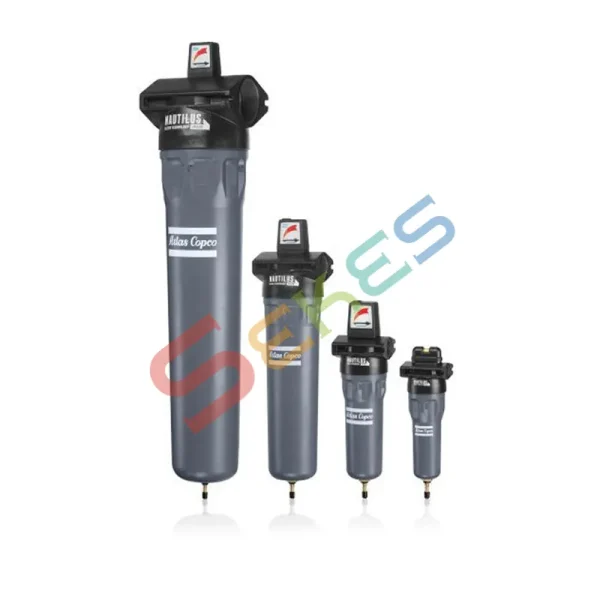

DDp(+)/PDp(+) SERIES (F) (10-8000) AIR FILTERS
$500.00
Atlas Copco DDp(+)/PDp(+) series air filters efficiently prevent dust, particulates and micro-organisms arising from corrosion, dirt and adsorption material from entering your compressed air stream.
Contaminant
Dry dust
Test method
ISO 8573-4:2001, ISO 12500-3:2009
Particle removal efficiency (% at MPPS)
99.81-99.98
Dry pressure drop (mbar)
135-100
Element service
After 4,000 operating hours or 1 year or 350 mbar pressure drop
Precede with
Dryer, Dryer DDp, Dryer DDp+
Lead Time
2-4 Weeks
MOQ
1 Unit
Packaging
Carton
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
ATLAS COPCO DDp(+)/PDp(+) SERIES (F) (10-8000) AIR FILTERS
Dust is all around us, which is why it is one of the most common threats to compressed air systems. To protect you and your investments from dust, Atlas Copco has developed a series of top-quality air filters.
Atlas Copco DDp(+)/PDp(+) series air filters efficiently prevent dust, particulates and micro-organisms arising from corrosion, dirt and adsorption material from entering your compressed air stream. These innovative filtration solutions are engineered to cost-effectively provide the best air purity and meet today’s increasing quality demands.
DDp+/PDp+ series introduction
With their pleated design and ribbed housing, these innovative filtration solutions were engineered to cost-effectively provide an outstanding air purity and to meet increasingly strict quality demands. Their high-performance, stainless-steel cores, in combination with epoxy-sealed caps and a filter housing with anti-corrosive coating make the DDp+/PDp+ series highly reliable. In addition, smart indicators facilitate the operation of the filters and make optimal maintenance easy.
The ideal filtration technology
The DDp+/PDp+ series uses pleated technology filtration media. It is the preferred method to capture dry particulate in compressed air. Over time, particles will unavoidably clog the filter media. Because pleated surfaces have a larger surface area, they ensure that filters last longer and experience a lower pressure drop.
inPASS™ bypass
In addition to outstanding filters, you also get the revolutionary built-in bypass that allows you to service your filter without disrupting the air flow. To you that means big investment savings by eliminating the need to install an expensive external piping bypass, lower operating and energy costs as well as reduced maintenance times.
Service indicator
To ensure constant air quality, the service indicator allows for an easy check of the filter’s running hours, differential pressure, and the maintenance status. It can even send a remote alert.
Cutting-edge filtration technology
Atlas Copco’s dedicated filtration team is always looking for ways to give you a competitive edge. Our new generation of filters features several innovations that make your filtration system more efficient and its operation easier. Here are just three examples.
DDp+/PDp+ series Performance
Find out some useful information on the performance of the DDp+/PDp+ series below.
| DDp+ | PDp+ | |
| Contaminant | Dry dust | |
| Filtration technology | Pleated | |
| Test method | ISO 8573-4:2001, ISO 12500-3:2009 | |
| Particle removal efficiency (% at MPPS) | 99.92 | 99.98 |
| ISO class 8573-1 | [2:-:3] | [1:-:2] |
| Average dry pressure drop (mbar) | 49 | 56 |
| Element service | After 8,000 operating hours or 1 year or 350 mbar pressure drop | |
| For flanged filters: after 4,000 operating hours or 1 year or 350 mbar pressure drop | ||
| Precede with | Dryer | Dryer and DDp+ |
Filter applications
| ISO 8573-1:2010 class | Solid particles | Water | Oil (aerosol, liquid, vapor) | ||
| Wet conditions | Dry conditions | ||||
| As specified by the customer* | Oil-free compressor | ||||
| 1 | DD+ & PD+ | DDp+ & PDp+ | Desiccant dryer | DD+ & PD+ | & QD+/QDT |
| UD+ | UD+ | & QD+/QDT | |||
| 2 | DD+ | DDp+ | Desiccant dryer, rotary drum dryer | DD+ & PD+ | |
| UD+ | |||||
| 3 | DD+ | DDp+ | Desiccant dryer, membrane dryer, rotary drum dryer | DD+ | |
| 4 | DD+ | DDp+ | Membrane dryer, refrigerant dryer | DD+ | |
| 5 | DD+ | DDp+ | Membrane dryer, refrigerant dryer | – | |
| 6 | – | – | Membrane dryer, refrigerant dryer | – | |
Sizing & dimensions
| FILTER SIZE
DDp/PDp |
Nominal capacity | Reference pressure | Maximum pressure | Connections | Dimensions | Free space for cartridge replacement |
Weight |
|||||||||||||
| Standard | + | A | B | C | D | |||||||||||||||
| Standard
12 |
+ | l/s
12 |
cfm | l/s
10 |
cfm | bar(e)
7 |
psig | bar(e) | psig | in
3/8 |
mm | in
3.5 |
mm | in
2.4 |
mm | in
10.6 |
mm | in
2.9 |
kg | lbs
2.2 |
| 10+ | 25 | 21 | 102 | 16 | 232 | 90 | 61 | 268 | 75 | 1.0 | ||||||||||
| 25 | 20+ | 25 | 53 | 20 | 42 | 7 | 102 | 16 | 232 | 1/2 | 90 | 3.5 | 61 | 2.4 | 268 | 10.6 | 75 | 2.9 | 1.1 | 2.4 |
| 45 | 35+ | 45 | 95 | 35 | 74 | 7 | 102 | 16 | 232 | 1/2 | 90 | 3.5 | 61 | 2.4 | 323 | 12.7 | 75 | 2.9 | 1.3 | 2.9 |
| 65 | 50+ | 65 | 138 | 50 | 106 | 7 | 102 | 16 | 232 | 3/4 & 1 | 110 | 4.3 | 99 | 3.9 | 374 | 14.7 | 75 | 2.9 | 1.6 | 4.2 |
| 90 | 70+ | 90 | 191 | 70 | 148 | 7 | 102 | 16 | 232 | 1 | 110 | 4.3 | 99 | 3.9 | 414 | 16.3 | 75 | 2.9 | 2.1 | 4.6 |
| 160 | 130+ | 160 | 339 | 130 | 275 | 7 | 102 | 16 | 232 | 1-1/2 | 140 | 5.5 | 105 | 4.1 | 520 | 20.5 | 100 | 3.9 | 4.2 | 9.3 |
| 215 | 170+ | 215 | 456 | 170 | 360 | 7 | 102 | 16 | 232 | 1-1/2 | 140 | 5.5 | 105 | 4.1 | 603 | 23.7 | 100 | 3.9 | 4.5 | 9.9 |
| 265 | 210+ | 265 | 562 | 210 | 445 | 7 | 102 | 16 | 232 | 1-1/2 | 140 | 5.5 | 105 | 4.1 | 603 | 23.7 | 100 | 3.9 | 4.6 | 10.1 |
| 360 | 310+ | 360 | 763 | 310 | 657 | 7 | 102 | 16 | 232 | 2 & 2-1/2 | 179 | 7.0 | 121 | 4.8 | 689 | 27.1 | 150 | 5.9 | 6.9 | 15.2 |
| 525 | 425+ | 525 | 1112 | 425 | 901 | 7 | 102 | 16 | 232 | 3 | 210 | 8.3 | 128 | 5.0 | 791 | 31.1 | 200 | 7.9 | 11.0 | 24.2 |
| 690 | 550+ | 690 | 1462 | 550 | 1165 | 7 | 102 | 16 | 232 | 3 | 210 | 8.3 | 128 | 5,0 | 961 | 37.9 | 200 | 7.9 | 12.6 | 27.8 |
| 630F | 550+F | 630 | 1335 | 550 | 1165 | 7 | 102 | 16 | 232 | DN80 | 370 | 14.6 | 280 | 11 | 1295 | 51.0 | 1375 | 54.1 | 76.0 | 167.6 |
| – | 850+T | – | – | 850 | 1801 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 418 | 16.5 | 796 | 31.3 | 200 | 7.9 | 35.2 | 77.6 |
| 970F | 850+F | 970 | 2055 | 850 | 1801 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 410 | 16.1 | 1360 | 53.5 | 1500 | 59.1 | 141.0 | 310.9 |
| – | 1100+T | – | – | 1100 | 2331 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 418 | 16.5 | 966 | 38.0 | 200 | 7.9 | 37.4 | 82.4 |
| 1260F | 1100+F | 1260 | 2670 | 1100 | 2331 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 410 | 16.1 | 1360 | 53.5 | 1500 | 59.1 | 143.0 | 415.3 |
| 1600F | 1400+F | 1600 | 3390 | 1400 | 2967 | 7 | 102 | 16 | 232 | DN150 | 620 | 24.4 | 485 | 19.1 | 1480 | 58.3 | 1560 | 61.4 | 210.0 | 463.0 |
| 2200F | 1800+F | 2200 | 4662 | 1800 | 3814 | 7 | 102 | 16 | 232 | DN150 | 640 | 25.2 | 490 | 19.3 | 1555 | 61.2 | 1640 | 64.6 | 176.0 | 388,0 |
| 2400F | 2200+F | 2400 | 5086 | 2200 | 4662 | 7 | 102 | 16 | 232 | DN150 | 640 | 25.2 | 490 | 19.3 | 1555 | 61.2 | 1640 | 64.6 | 178.0 | 392.4 |
| 3600F | 3000+F | 3600 | 7628 | 3000 | 6357 | 7 | 102 | 16 | 232 | DN200 | 820 | 32.3 | 650 | 25.6 | 1745 | 68.7 | 1710 | 67.3 | 420.0 | 925.9 |
| – | 4000+F | – | – | 4000 | 8476 | 7 | 102 | 16 | 232 | DN200 | 820 | 32.3 | 650 | 25.6 | 1745 | 68.7 | 1710 | 67.3 | 428.0 | 943.6 |
| – | 5000+F | – | – | 5000 | 10595 | 7 | 102 | 16 | 232 | DN250 | 820 | 32.3 | 650 | 25.6 | 1745 | 68.7 | 1710 | 67.3 | 432.0 | 952.4 |
| – | 6000+F | – | – | 6000 | 12714 | 7 | 102 | 16 | 232 | DN250 | 920 | 32.3 | 815 | 32.1 | 2085 | 80.3 | 1625 | 64 | 671.0 | 1479.3 |
| – | 7000+F | – | – | 7000 | 14833 | 7 | 102 | 16 | 232 | DN300 | 920 | 36.2 | 815 | 32.1 | 2085 | 82.1 | 1625 | 64 | 675.0 | 1488.1 |
| – | 8000+F | – | – | 8000 | 16952 | 7 | 102 | 16 | 232 | DN300 | 1040 | 40.9 | 930 | 36.6 | 2070 | 81.5 | 1625 | 64 | 900.0 | 1984.2 |
Correction factors
| Inlet pressure (bar) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
| Inlet pressure (psig) | 15 | 29 | 44 | 58 | 72.5 | 87 | 102 | 116 | 145 | 174 | 203 | 232 |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.75 | 0.83 | 0.92 | 1.00 | 1.06 | 1.20 | 1.31 | 1.41 | 1.50 |
Example
•Working pressure 3 bar(g), compressed air flow 35 l/s.
•Multiply the nominal capacity of the selected filter with the corresponding correction factor at the required working pressure to obtain the capacity at working pressure:
-Size 50+: 50 l/s * 0.65 = 33 l/s => the 50+ filter size is not large enough.
-Size 70+: 70 l/s * 0.65 = 46 l/s => the 70+ filter size is the size to select.
Options

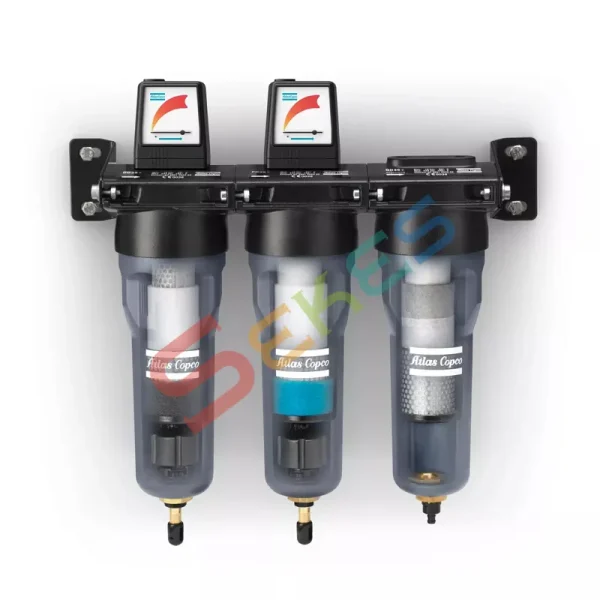

•Filter connection kit for easy mounting in series (10+ – 550+ l/s and 12-690 l/s).

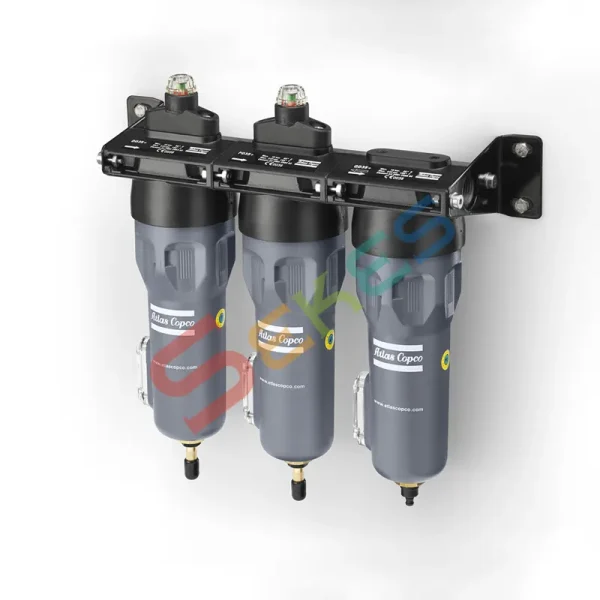

•Wall-mounting kit simplifies installation (10+ – 550+ l/s and 12-690 l/s).
•Voltage-free contact mounted in the differential pressure gauge, to give remote indication of cartridge replacement.
Certification
•ISO 8573-4:2001
•ISO 12500-3:2009
Inquiry Now
| Weight | 10 kg |
|---|---|
| Dimensions | 14 × 5 × 10 cm |
| Contaminant | Dry dust |
| Test method | ISO 8573-4:2001, ISO 12500-3:2009 |
| Particle removal efficiency (% at MPPS) | 99.81-99.98 |
| Dry pressure drop (mbar) | 135-100 |
| Element service | After 4,000 operating hours or 1 year or 350 mbar pressure drop |
| Precede with | Dryer, Dryer DDp, Dryer DDp+ |
| Lead Time | 2-4 Weeks |
| MOQ | 1 Unit |
| Packaging | Carton |
| Product Quality | 100% Genuine, 100% Original, Brand New |
| Transaction Mode | CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA |
