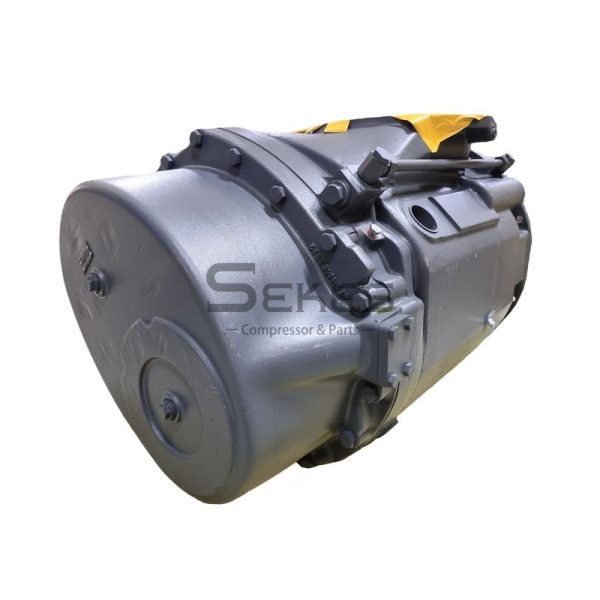

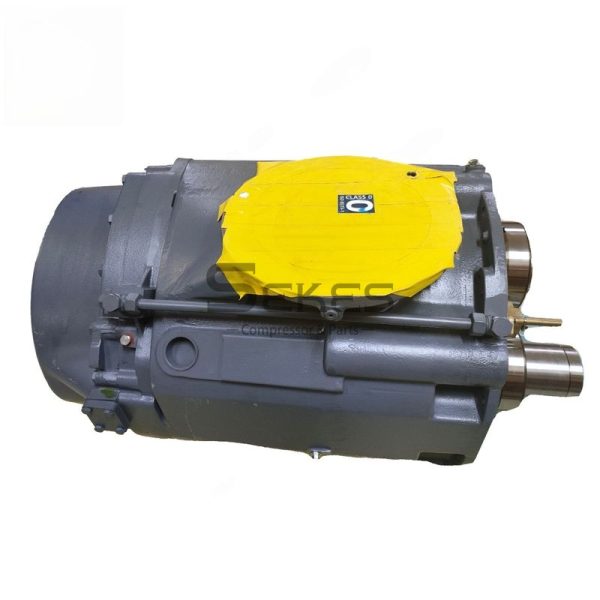

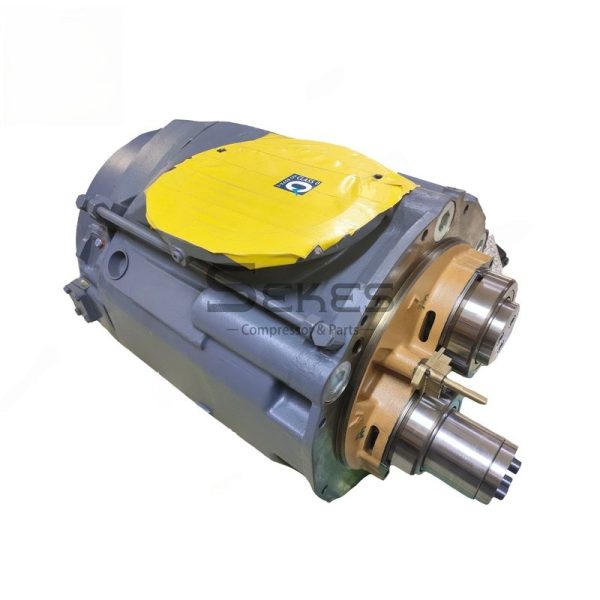

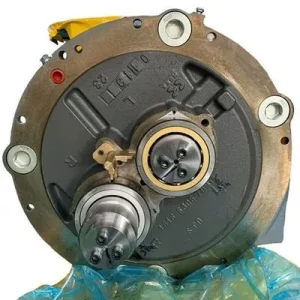

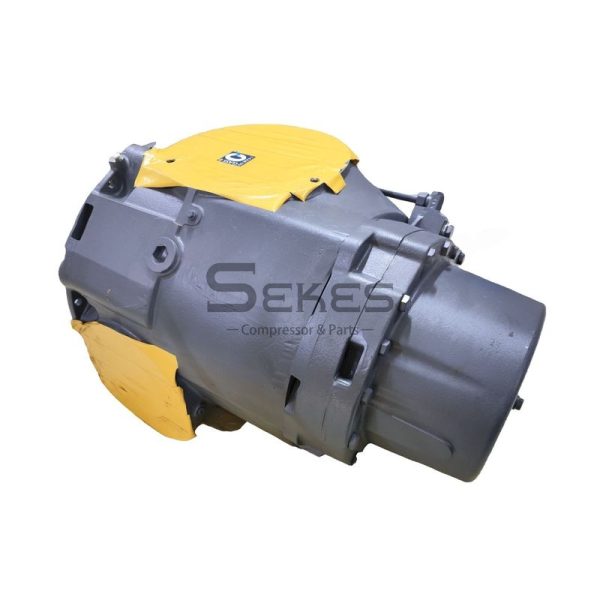

1616635683: STAGE 6 GAS

The Atlas Copco 1616635683 STAGE 6 GAS element is a air end designed for Atlas Copco oil-free screw air compressors. Engineered and manufactured by Atlas Copco in Belgium, this genuine and original air compressor head is built to maintain stable compression efficiency, reliable airflow performance, and long operating life under demanding industrial conditions.

Product Description

In oil-free compressed air systems, the compression element directly affects air purity, energy efficiency, and machine reliability. The STAGE 6 GAS element has been developed specifically for Atlas Copco oil-free screw compressors, where precision engineering and thermal stability are essential for maintaining ISO-certified oil-free air quality.

Unlike lower-grade aftermarket components, the original Belgian-manufactured STAGE 6 GAS element is produced according to Atlas Copco’s strict manufacturing tolerances and quality control procedures. This ensures optimal rotor alignment, stable internal pressure ratios, low vibration levels, and consistent operational efficiency throughout the service life of the compressor.

We supply this brand-new genuine air end sourced directly from Atlas Copco (Shanghai) Trading Co., Ltd., ensuring full traceability, authentic product identification, and dependable after-sales support. Every unit arrives in original packaging with clear labeling and factory-standard protection.

Product Specifications

Installation Guidelines

Proper installation is essential for achieving the best performance and service life from the STAGE 6 GAS element.

1. Verify Equipment Compatibility

Before installation, confirm that the compressor model and technical specifications match the intended application.

2. Inspect the Compressor System

Check surrounding components including bearings, seals, couplings, cooling systems, and piping connections. Installing a new element into a damaged system can reduce service life.

3. Use Proper Lifting Equipment

Because the component weighs approximately 980 kg, operators should use certified lifting equipment and follow approved safety procedures during handling and positioning.

4. Maintain Clean Installation Conditions

Contamination during installation may affect compressor performance. Keep all connection surfaces clean and protected during assembly.

5. Follow Atlas Copco Service Procedures

Qualified technicians should install the component according to Atlas Copco maintenance guidelines and torque specifications.

6. Perform Operational Testing

After installation, monitor vibration levels, operating temperature, pressure readings, and airflow performance during commissioning.

Operating Precautions

To maintain safe and efficient compressor operation, users should follow several important maintenance practices.

• Perform regular preventive maintenance according to service schedules
• Replace filters and consumables at recommended intervals
• Monitor compressor operating temperatures
• Maintain proper ventilation around the compressor system
• Use only compatible lubricants and service materials where applicable
• Avoid operating the compressor beyond specified pressure ranges
• Inspect vibration and noise levels regularly

Using non-genuine spare parts may lead to reduced performance, higher operating costs, and potential system damage.

Quality Assurance and Warranty

We supply the 1616635683 STAGE 6 GAS element with clear product identification and original factory packaging.

Atlas Copco provides a 12-month warranty covering defects related to manufacturing or production quality. This warranty gives buyers additional confidence in product reliability and after-sales support.

The warranty does not cover:

1. Improper installation
2. Misuse or abnormal operating conditions
3. Incorrect maintenance procedures
4. Normal wear and tear
5. Damage caused by incompatible spare parts

Using spare parts other than genuine Atlas Copco components may void warranty coverage and negatively affect compressor performance.
