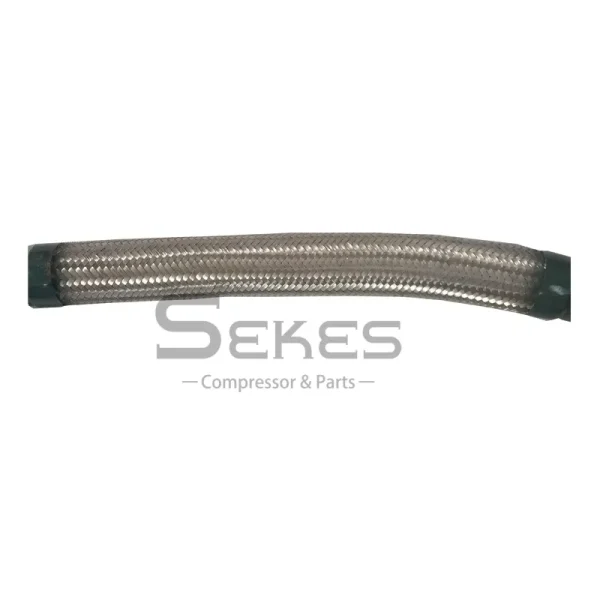

1622315400: PIPE FX910XF

As a leading specialist in industrial air compressor components, our team has firsthand experience in handling, inspecting, and supplying the genuine and original Atlas Copco 1622315400 FX910XF Pipe. Every single unit that passes through our logistics center undergoes strict quality inspection.

Firsthand Verification and Uncompromising Quality

When you receive this product from us, you will immediately recognize the distinct indicators of absolute authenticity. The pipe features the precision-etched, unique 10-digit Atlas Copco part number—1622315400—clearly marked on the component for flawless inventory verification and tracking.

Furthermore, each pipe is securely packaged within the genuine, branded Atlas Copco cardboard box, complete with the authorized factory labeling and trademark logos. Based on our extensive practical operations, technical assessments, and long-term deployment across multiple client facilities, we conclusively verify that this item is a 100% genuine original air compressor part. The exact physical fit, professional-grade surface treatment, and precise flange dimensions match the original equipment specifications flawlessly.

Technical Specifications

The following parameter table outlines the precise physical dimensions, commercial classification, and standard metrics for the 1622315400 Pipe FX910XF, sourcing directly from the official manufacturing data:

Technical Insights and Step-by-Step Oil Pipe Replacement Protocol

In high-pressure compressed air environments, the fluid circulation system must handle significant thermal expansion and vibration stresses. The FX910XF Pipe operates primarily as an essential structural oil conduit, ensuring smooth lubricant flow to maintain ideal sealing and cooling within the air end. Over thousands of operating hours, regular inspection and timely replacement of these pipes prevent oil degradation, pressure drops, and catastrophic system overheating.

To assist your maintenance engineering team, our technical staff has compiled the official protocol for safely replacing this specific oil pipe line:

1. Safety Shutdown & Depressurization: Completely power down the Atlas Copco compressor unit. Lock out and tag out (LOTO) the electrical disconnect. Close the main air outlet valve and fully vent the internal pressure from the oil separator vessel. Verify that the pressure gauges read exactly zero bar before proceeding.
2. Cooling & Oil Containment: Allow the unit to cool down completely to prevent thermal burns from hot oil. Place an industrial fluid collection container directly beneath the oil pipe joints to catch any residual lubrication fluid.
3. Unfastening Existing Connections: Utilizing professional-grade wrenches, carefully loosen the hex bolts or coupling nuts securing the old pipe line. Support the pipe during removal to avoid putting structural leverage stress on the connecting manifolds or air end ports.
4. Cleaning and Sealing Preparation: Inspect the mating flanges and threads on the compressor body. Clean away any residual sealant, old gasket debris, or carbonized oil deposits. Install brand-new, factory-certified O-rings or seals onto the coupling interfaces.
5. Installing the New 1622315400 Pipe: Align the new 820 mm pipe carefully with both terminal connections. Hand-tighten the mounting bolts initially to ensure correct thread engagement and prevent cross-threading.
6. Torque Verification: Using a calibrated torque wrench, tighten all connection fasteners in an alternating cross-pattern to the exact manufacturer-specified torque values. This guarantees an airtight, leak-free seal without over-stressing the threads.
7. Operational Test: Clean up the workspace, remove the containment tray, and restore power to the system. Run the air compressor under a light load while performing a visual inspection for any signs of weeping or leakage along the pipe assembly.

The Unrivaled Heritage of Atlas Copco

Atlas Copco stands as a global industrial titan, recognized for over a century as a pioneer in the innovation and manufacturing of compressed air systems, vacuum solutions, and power tools. Founded in Stockholm, Sweden, the brand has defined the gold standard for operational efficiency, sustainable productivity, and extreme mechanical durability. Their machines are engineered to operate in the most demanding industrial environments across manufacturing, automotive, energy, and mining sectors.

By utilizing authentic components like the 1622315400 Pipe, operators protect the long-term integrity of their capital investments. Every genuine part is crafted with exact material chemistry—as reflected by the premium-tier stainless steel classification under tariff 73064080—ensuring optimal thermal stability and chemical resistance against advanced synthetic compressor fluids. Investing in genuine Atlas Copco parts guarantees that the overall compressor assembly maintains its original design performance, low energy footprint, and rigorous safety certifications.

Your Dedicated Partner for Authentic Compressor Solutions

We serve as an established, trustworthy air compressor dealer and spare parts dealer specialized in providing premium industrial compressor equipment and 100% authentic spare parts. Our organization has focused exclusively on Atlas Copco air compressors and original components for years, building an industry-leading infrastructure capable of meeting critical maintenance timelines. To guarantee rapid fulfillment and minimize client downtime, we maintain an extensive, regular inventory of over 23,000 distinct line items.

We source our products directly from Atlas Copco (Shanghai) Trading Co., Ltd., ensuring a transparent, fully traceable, and bulletproof supply chain. This strategic procurement process guarantees that every single product delivered to your site is a brand-new, 100% genuine, and original Atlas Copco component. Through our commitment to engineering professionalism, reliable shipping timelines, and transparent business ethics, we have established stable, long-term cooperative partnerships with corporate clients and repair facilities worldwide, founded entirely on mutual respect and shared success.
