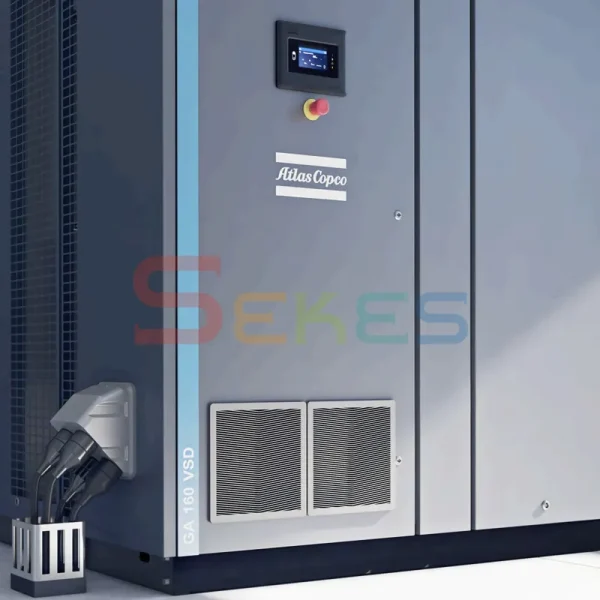

GA90-160 (VSD⁺) Oil-injected Air Compressors

Name: GA90-160 (VSD⁺) Oil-injected Air Compressors - ATLAS COPCO | ACD
Brand: ATLAS COPCO
SKU: 127
Price: 15000.00 USD
Availability: InStock
Rating: 5.00 (3 reviews)

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

$15,000.00

The latest generation of Atlas Copco GA90-160 (VSD⁺) Oil-injected Air Compressors are simple in concept for maximum reliability, serviceability, and advanced in design to deliver the best efficiency on the market.

Enquiry

SKU: 127 Category: Oil-injected Air Compressors Tags: Screw Air Compressors, VSD (Variable Speed Drive) Brand: ATLAS COPCO

Maximum working pressure bar(e)

5 - 14

Maximum working pressure psig

72 - 155

Installed motor

90 - 160 kW

Installed motor power

125 - 200 hp

Capacity FAD l/s

96 - 590

Capacity FAD m³ /min

5.7 - 35.4

Capacity FAD cfm

201 - 1250

Country of Origin

Lead Time

2-4 Weeks

MOQ

1 Unit

Packaging

Wooden Crate

Product Quality

100% Genuine, 100% Original, Brand New

Transaction Mode

CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA

Guaranteed Safe Checkout

Atlas Copco Atlas Copco GA90-160 (VSD⁺) Oil-injected Screw Compressors (GA90, GA110, GA132, GA160) bring industry-leading performance, flexible operation and high productivity, reduced energy costs at a minimal cost of ownership. A wide range of compressors enables you to find the air solution that perfectly matches your specific requirements. Built to perform in even the harshest environments, an Atlas Copco GA series keeps your production running efficiently.

GA90-160 (VSD⁺) ：Highest reliability,lowest operating costs

The shortest route to maximize your profitability is to minimize your operational costs. With up to 80% of a compressor lifecycle cost coming from the energy it consumes, this should be a clear focus. Atlas Copco GA90-160 (VSD⁺) Oil-injected Screw Compressors with SmartInjection enabled compression elements and IE4 or better class motors are designed to achieve significant energy savings while providing long and trouble free life even in the harshest environmental conditions.

Efficiency

At the heart of the Atlas Copco GA90-160 (VSD⁺) Oil-injected Screw Compressors are state-of-the-art compression elements with SmartInjection technology and high efficiency oil cooled IE4 or better class motors. This highly efficient drive train coupled with generous cooling capacity, low internal pressure drops and precise control from the Elektronikon® Touch ensures optimum efficiency.

Reliability

The Atlas Copco GA90-160 (VSD⁺) Oil-injected Screw Compressors’s drive train is IP66 rated protecting it completely from environmental dust and moisture ensuring it can operate reliably in the toughest conditions and at ambient temperatures up to 55°C/131°F.

Serviceability

Service time is reduced to a minimum with all service parts grouped together for ease of access and, if greater assess is required, the patented portal design enables full access to all components. Each component has also been designed for serviceability, halving the time required to service compared to traditional designs.

What makes the new GA 90+ – 160 (VSD+) unique?

Atlas Copco’s GA range is designed for reduced energy consumption, high reliability and serviceability. All components are designed for ease of service with the most commonly serviceable parts grouped together for ease of access. The patented portal design enables full access to all components when more extensive maintenance is required. This results in a service time that is half the time of comparable designs.
Atlas Copco provides customers with a tip to toe 5-year Warranty Plus program on the complete machine. This ensures smooth operation in the harshest environments for which the GA is built. Examples of these industries include mining, metal plants or the cement industry.

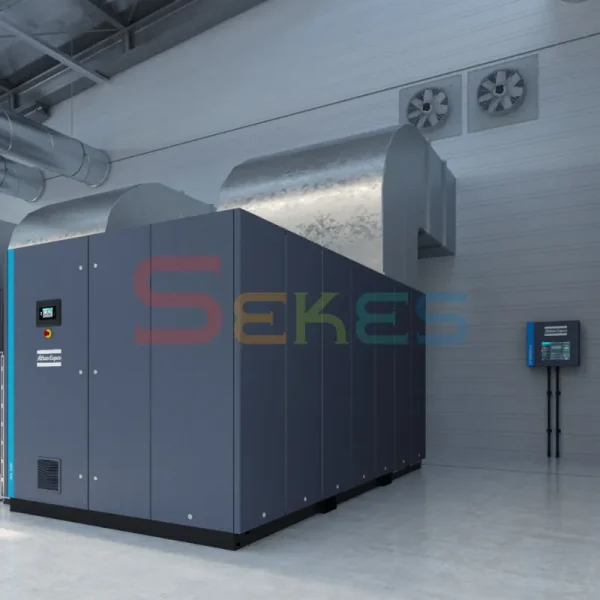

The GA 90+ – 160 (VSD+) works together with the new Optimizer 4.0 to optimize an entire compressed air system through selection of the most efficient combination of compressors. With the optimizer you can monitor the performance and energy consumption of each individual machine, as well as the entire compressed air system.

“The latest generation of GA compressors are particularly well suited to the mining industry, metal processing and power plants where its IP66 drive train offers complete protection from environmental dust and moisture ensuring reliable operation even in the harshest environmental conditions. This reliability also provides long and trouble-free life in general industrial applications in ambient temperatures up to 55°C/131°F.” James Elbro, Product Marketing Manager

Optimize your compressed air system

Minimizing Excess Pressure

Optimizer 4.0 minimizes the generation of excess compressed air by starting and stopping compressors. Its user friendly interface enables you to set multiple pressure bands, allowing you to optimize your compressor installation for varying circumstances, such as non-productive hours.

Full VSD Benefits

With Optimizer 4.0 you can realize the full energy saving potential of VSD (Variable Speed Drive). It regulates the VSD to ensure that the compressed air output is proportional to the demand, preventing higher pressures than required, excess unloaded running, and spiraling energy costs.

Improving Uptime

Optimizer 4.0 effectively eliminates production downtime caused by unexpected system pressure drops, because it regulates the system pressure instead of the compressor output pressure. This means Optimizer 4.0 will automatically adjust the system pressure to compensate for pressure drops due to filters, piping and dryers for example.

Flow diagrams GA90-160 (VSD⁺)

Process flow, oil flow and cooling flow – step by step

GA 110-160 VSD⁺ AC PACK

GA 110-160 VSD⁺ AC FF

GA 110-160 VSD⁺ WC PACK

GA 110-160 VSD⁺ WC FS FF

Technical specifications GA 90⁺ – 160 (50 Hz)

TYPE	Maximum working pressure				Capacity FAD (1)			Installed motor power	Noise level (2)	Weight
	Standard		Full Feature (3)		Standard / Full Feature (3)			Installed motor power	Noise level (2)	Standard		Full Feature (3)
	bar(e)	psig	bar(e)	psig	l/s	m3/min	cfm	hp	dB(A)	kg	lb	kg	lb
GA 90+ – 5.5 bar	5.5	80	5.3	77	353	21.2	748	90	76	2800	6173	3200	7055
GA 90+ – 7.5 bar	7.5	109	7.3	106	297	17.8	629			2800	6173	3200	7055
GA 90+ – 8.5 bar	8.5	123	8.3	120	284	17	602			2800	6173	3200	7055
GA 90+ – 10 bar	10	145	9.8	142	260	15.6	551			2800	6173	3200	7055
GA 110 – 5.5 bar	5.5	80	5.3	77	424	25.4	898	110	77	2700	5952	3100	6834
GA 110 – 7.5 bar	7.5	109	7.3	106	370	22.2	784			2700	5952	3100	6834
GA 110 – 8.5 bar	8.5	123	8.3	120	347	20.8	735			2700	5952	3100	6834
GA 110 – 10 bar	10	145	9.8	142	316	19	670			2700	5952	3100	6834
GA 132 – 5.5 bar	5.5	80	5.3	77	502	30.1	1064	132	78	2800	6173	3200	7055
GA 132 – 7.5 bar	7.5	109	7.3	106	440	26.4	932			2800	6173	3200	7055
GA 132 – 8.5 bar	8.5	123	8.3	120	414	24.8	877			2800	6173	3200	7055
GA 132 – 10 bar	10	145	9.8	142	382	22.9	809			2800	6173	3200	7055
GA 160 – 7.5 bar	7.5	109	7.3	106	525	31.5	1112	160	78	2900	6393	3300	7275
GA 160 – 8.5 bar	8.5	123	8.3	120	495	29.7	1049			2900	6393	3300	7275
GA 160 – 10 bar	10	145	9.8	142	460	27.6	975			2900	6393	3300	7275

(1) Unit performance measured according to ISO 1217, Annex C, Edition 4 (2009)
Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C (68°F).
(2) A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB). Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.
(3) Integrated dryer (FF) : compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).

FAD(1) is measured at the following working pressures:

	Standard	FF
5.5 bar version at	5 bar	5 bar
7.5 bar version at	7 bar	7 bar
8.5 bar version at	8 bar	8 bar
10 bar version at	9.5 bar	9.5 bar

Dimensions

TYPE	L	W	H
TYPE	mm	mm	mm
GA 90+ – 160	2500	1785	2020
GA 90+ – 160 (FF)	2900	1785	2020

Technical specifications GA 90⁺ – 160 (60 Hz)

TYPE	Maximum working pressure				Capacity FAD (1)			Installed motor power	Noise level (2)	Weight
	Standard		Full Feature (3)		Standard / Full Feature (3)			Installed motor power	Noise level (2)	Standard		Full Feature (3)
	bar(e)	psig	bar(e)	psig	l/s	m3/min	cfm	hp	dB(A)	kg	lb	kg	lb
GA 90+ – 75 psi	5.5	80	5.3	77	316	19	670	125	76	3100	6834	3450	7606
GA 90+ – 100 psi	7.4	107	7.2	104	303	18.2	642			3100	6834	3450	7606
GA 90+ – 125 psi	9.1	132	8.9	129	271	16.3	574			3100	6834	3450	7606
GA 90+ – 150 psi	10.9	158	10.7	155	243	14.6	515			3100	6834	3450	7606
GA 110 – 75 psi	5.5	80	5.3	77	425	25.5	901	150	77	2600	5732	3050	6724
GA 110 – 100 psi	7.4	107	7.2	104	372	22.3	788			2600	5732	3050	6724
GA 110 – 125 psi	9.1	132	8.9	129	333	20	706			2600	5732	3050	6724
GA 110 – 150 psi	10.9	158	10.7	155	298	17.9	631			2600	5732	3050	6724
GA 132 – 75 psi	5.5	80	5.3	77	505	30.3	1070	175	77	2700	5952	3150	6945
GA 132 – 100 psi	7.4	107	7.2	104	446	26.8	945			2700	5952	3150	6945
GA 132 – 125 psi	9.1	132	8.9	129	400	24	848			2700	5952	3150	6945
GA 132 – 150 psi	10.9	158	10.7	155	354	21.2	750			2700	5952	3150	6945
GA 160 – 100 psi	7.4	107	7.2	104	529	31.7	1121	215	78	2900	6393	3250	7165
GA 160 – 125 psi	9.1	132	8.9	129	480	28.8	1017			2900	6393	3250	7165
GA 160 – 150 psi	10.9	158	10.7	155	439	26.3	930			2900	6393	3250	7165

FAD(1) is measured at the following working pressures:

	Standard	FF
75 psi version at	73 psi	73 psi
100 psi version at	100 psi	100 psi
125 psi version at	125 psi	125 psi
150 psi version at	150 psi	150 psi

Dimensions

TYPE	L	W	H
TYPE	inch	inch	inch
GA 90+ – 160	98.5	70.3	79.5
GA 90+ – 160 (FF)	114.2	70.3	79.5

Technical specifications GA 110-160 VSD⁺ (50 Hz)

TYPE		Maximum working pressure				Capacity FAD (1)			Installed motor power	Noise level (2)	Weight
		Standard		Full Feature (3)		Standard / Full Feature (3)			Installed motor power	Noise level (2)	Standard		Full Feature (3)
		bar(e)	psig	bar(e)	psig	I/s	m³/min	cfm	kW	dBA)	kg	lb	kg	lb
GA 110VSD+ – 8.5 bar	Minimum	5	72	5	72	104 – 407	6.2 – 24.4	220 – 862	110	77	2400	5291	2800	6173
	Nominal	7	101	7	101	101 – 390	6.1 – 23.4	214 – 826
	Maximum	8.5	123	8.3	120	100 – 356	6.0 – 21.4	212 – 754
GA 110VSD+ – 10 bar	Minimum	6	87	6	87	102 – 405	6.1 – 24.3	216 – 858	110	77	2400	5291	2800	6173
	Nominal	9.5	138	9.5	138	97 – 332	5.8 – 19.9	206 – 703
	Maximum	10	145	9.8	142	96 – 325	5.8 – 19.5	203 – 689
GA 132 VSD+ – 8.5 bar	Minimum	5	72	5	72	104 – 485	6.2 – 29.1	220 – 1028	132	77	2500	5512	2950	6504
	Nominal	7	101	7	101	101 – 463	6.1 – 27.8	214 – 981
	Maximum	8.5	123	8.3	120	100 – 427	6.0 – 25.6	212 – 905
GA 132 VSD+ – 10 bar	Minimum	6	87	6	87	102 – 402	6.1 – 24.1	216 – 852	132	77	2500	5512	2950	6504
	Nominal	9.5	138	9.5	138	97 – 396	5.8 – 23.8	206 – 839
	Maximum	10	145	9.8	142	96 – 391	5.8 – 23.5	203 – 828
GA 160 VSD+ – 8.5 bar	Minimum	5	72	5	72	104 – 590	6.2 – 35.4	220 – 1250	160	78	2550	5622	3000	6614
	Nominal	7	101	7	101	101 – 551	6.1 – 33.1	214 – 1168
	Maximum	8.5	123	8.3	120	100 – 511	6.0 – 30.7	212 – 1083
GA 160 VSD+ – 10 bar	Minimum	6	87	6	87	102 – 492	6.1 – 29.5	216 – 1042	160	78	2550	5622	3000	6614
	Nominal	9.5	138	9.5	138	97 – 480	5.8 – 28.8	206 – 1017
	Maximum	10	145	9.8	142	96 – 471	5.8 – 28.3	203 – 998

(1) Unit performance measured according to ISO 1217, Annex C and E, Edition 4 (2009) Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi)
– Intake air temperature 20°C (68°F)
(2) A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB).
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614. ( 3) Integrated dryer (FF): compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).

FAD(1) is measured at the following working pressures:

	Standard	FF
8.5 bar version at	7 bar	7 bar
10 bar version at	9.5 bar	9.5 bar

Dimensions

TYPE	L	W	H
TYPE	mm	mm	mm
GA 110-160 VSD+	2500	1785	2020
GA 110-160 VSD+ (FF)	2900	1785	2020

Technical specifications GA 110-160 VSD⁺ (60 Hz)

TYPE		Maximum working pressure				Capacity FAD (1)			Installed motor power	Noise level (2)	Weight
		Standard		Full Feature (3)		Standard / Full Feature (3)			Installed motor power	Noise level (2)	Standard		Full Feature (3)
		bar(e)	psig	bar(e)	psig	I/s	m³/min	cfm	hp	dBA)	kg	Ib	kg	Ib
GA 110 VSD+ – 125 psi	Minimum	5	72	5	72	104 – 407	6.2 – 24.4	220 – 862	150	78	2400	5291	2800	6173
	Nominal	6.9	100	6.9	100	101 – 390	6.1 – 23.4	214 – 826
	Maximum	9.1	132	8.9	129	97 – 343	5.8 – 20.6	206 – 727
GA 110 VSD+ – 150 psi	Minimum	6	87	6	87	102 – 405	6.1 – 24.3	216 – 858	150	78	2400	5291	2800	6173
	Nominal	10.4	151	10.4	151	96 – 315	5.8 – 18.9	203 – 667
	Maximum	10.9	158	10.7	155	95 – 309	5.7 – 18.5	201 – 655
GA 132 VSD+ – 125 psi	Minimum	5	72	5	72	104 – 485	6.2 – 29.1	220 – 1028	175	78	2500	5512	2950	6504
	Nominal	6.9	100	6.9	100	101 – 466	6.1 – 28.0	214 – 987
	Maximum	9.1	132	8.9	129	98 – 412	5.9 – 24.7	208 – 873
GA 132 VSD+ – 150 psi	Minimum	6	87	6	87	102 – 402	6.1 – 24.1	216 – 852	175	78	2500	5512	2950	6504
	Nominal	10.4	151	10.4	151	96 – 378	5.8 – 22.7	203 – 801
	Maximum	10.9	158	10.7	155	95 – 372	5.7 – 22.3	201 – 788
GA 160 VSD+ – 125 psi	Minimum	5	72	5	72	104 – 590	6.2 – 35.4	220 – 1250	215	78	2550	5622	3000	6614
	Nominal	6.9	100	6.9	100	101 – 555	6.1 – 33.3	214 – 1176
	Maximum	9.1	132	8.9	129	98 – 495	5.9 – 29.7	208 – 1049
GA 160 VSD+ – 150 psi	Minimum	6	87	6	87	102 – 492	6.1 – 29.5	216 – 1042	215	78	2550	5622	3000	6614
	Nominal	10.4	151	10.4	151	96 – 456	5.8 – 27.4	203 – 966
	Maximum	10.9	158	10.7	155	95 – 449	5.7 – 26.9	201 – 951

(1) Unit performance measured according to ISO 1217, Annex C and E, Edition 4 (2009) Reference conditions:
Absolute inlet pressure 1 bar (14.5 psi) Intake air temperature 20°C (68°F)
(2) A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB).
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614. Pressure dew point of integrated refrigerant dryer at reference conditions: 2°C to 3°C (36°F to 37°F)
(3) Integrated dryer: Compressed air pressure dewpoint at dryer reference conditions 3°C (37°F)

FAD(1) is measured at the following working pressures:

	Standard	FF
5.5 bar version at	5 bar	5 bar
7.5 bar version at	7 bar	7 bar
8.5 bar version at	8 bar	8 bar
10 bar version at	9.5 bar	9.5 bar

Dimensions

TYPE	L	W	H
TYPE	mm	mm	mm
GA 90+ – 160	2500	1785	2020
GA 90+ – 160 (FF)	2900	1785	2020

Brochure

If you need Atlas Copco GA90-160 (VSD⁺) Oil-injected Air Compressors brochure, please click the link below to view or download it.

Atlas Copco GA90-160 (VSD⁺) Oil-injected Air Compressors

Inquiry Now

Contact Form Demo

Name

Country

Message

Weight	2000.00 kg
Dimensions	250 × 180 × 200 cm
Maximum working pressure bar(e)	5 – 14
Maximum working pressure psig	72 – 155
Installed motor	90 – 160 kW
Installed motor power	125 – 200 hp
Capacity FAD l/s	96 – 590
Capacity FAD m³ /min	5.7 – 35.4
Capacity FAD cfm	201 – 1250
Country of Origin	CN
Lead Time	2-4 Weeks
MOQ	1 Unit
Packaging	Wooden Crate
Product Quality	100% Genuine, 100% Original, Brand New
Transaction Mode	CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
