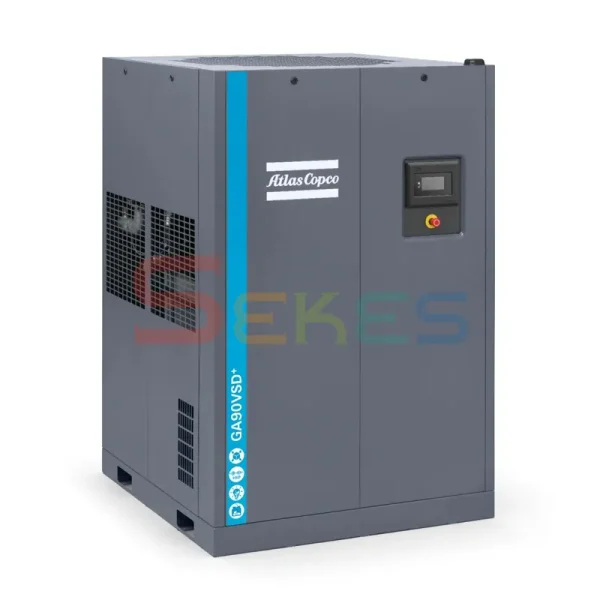

Atlas Copco GA 90 VSD+ Air Compressor

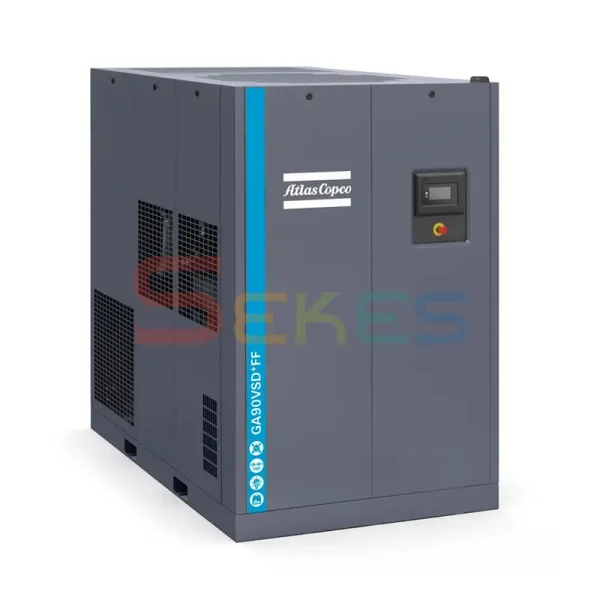

Atlas Copco GA 90 VSD+ FF Air Compressor

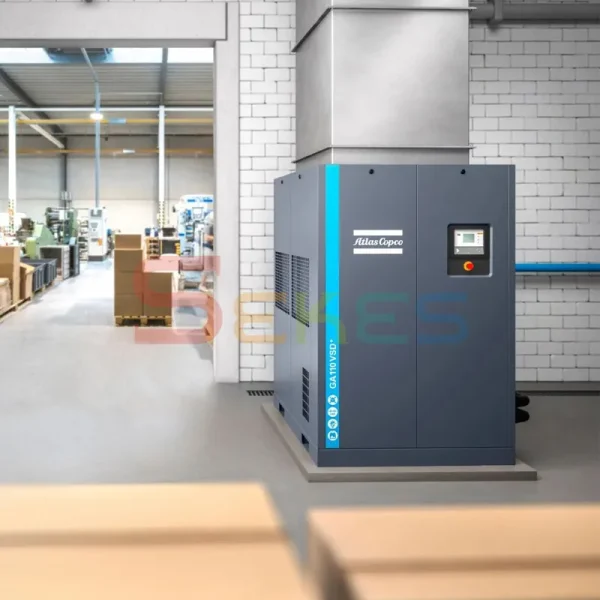

Atlas Copco GA 110 VSD+ Air Compressors Application
  1. Atlas Copco GA 75-110 VSD+ Air Compressors
  2. Atlas Copco GA 90 VSD+ Air Compressor Internal Components
  3. Atlas Copco GA 90 VSD+ Air Compressor
  4. Atlas Copco GA 90 VSD+ FF Air Compressor
  5. Atlas Copco GA 110 VSD+ Air Compressors Application

GA75L-110 VSD+ Oil-injected Air Compressors

(2 customer reviews)

$9,000.00

Atlas Copco GA75L-110 VSD+ oil-injected air compressors (GA75L, GA90, GA110) (100-150 hp) are not just a ground-breaking new compressor range, it is an operational transformation. It reduces your energy costs by 50% on average and maximizes uptime, even in the harshest conditions.

Discover how the GA 75L-110 VSD+ can transform your operational environment today.

Enquiry
SKU: 120 Category: Tag: Brand:
Working pressure
4 bar(g) - 13 bar(g)
Free air delivery
169 m³/h - 1251 m³/h
Installed motor power
75 kW - 110 kW
Capacity FAD l/s
47 l/s - 348 l/s
Country of Origin
CN
Lead Time
30-45Days
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
Guaranteed Safe Checkout

Atlas Copco GA75L-110 VSD+ oil-injected air compressors(GA75L, GA90, GA110) are not just a ground-breaking new compressor range, it is an operational transformation. It reduces your energy costs by 50% on average and maximizes uptime, even in the harshest conditions. Driving this next-level performance: Atlas Copco Variable Speed Drive, a powerful interior permanent magnet motor, and our in-house developed Neos inverter. Thanks to its compact vertical design, the GA 75L-110 VSD⁺ fits in even the smallest compressor room. Including yours? Discover how the GA 75L-110 VSD+ can transform your operational environment today.

Atlas Copco GA 75-110 VSD+ Air Compressors
Atlas Copco GA 75-110 VSD+ Air Compressors

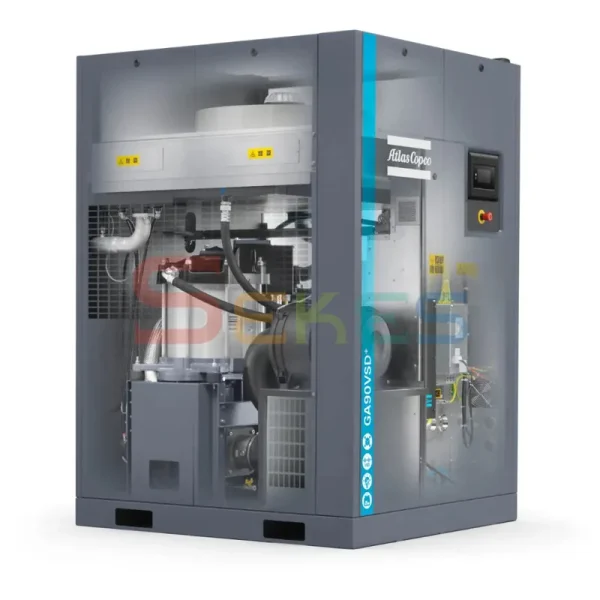

Inside the powerful GA 75L-110 VSD+

Inside the powerful GA 75L-110 VSD+
Inside the powerful GA 75L-110 VSD+
1.Interior Permanent Magnet (iPM) motor

• Compact, customized design for optimal cooling by oil.
• Designed in-house in Belgium.
• IP66 protection rating.
• No cooling air flow required.
• Oil-lubricated motor bearing:no (re)grease(ing) and increased uptime.

 2.New compressor element

• Improved efficiency.
• Made by Atlas Copco.
• Robust and silent.
3.Direct drive

• Vertical design, less air compressor parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.

 4.Inlet filter

• Heavy duty.
• Pressure drop indicator.
• Maintenance every 4,000 hours.
5.Cooling fan

• Already compliant with future ERP2020 efficiency.
• Optimized, application-specific design results in low noise and high efficiency.
• Condensation prevention cycle based on inlet humidity sensor.

 6.Classic cooler design

• Integrated water separation.
• Separate oil/air cooler.
• Easy access for maintenance.
7.Integrated dryer

• Ensures excellence in air quality.
• Incorporates optional UD+ filter to meet ISO 8573-1 Quality Class 1.4.2.
• True plug-and-play design eliminates cost of installing a separate dryer.

 8.Innovative Neos inverter

• Atlas Copco’s in-house designed inverter now also controls iPM motors.
• IP5x protection.
• Robust aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.
9.Elektronikon® Touch controller

• High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
• Easy to use and designed to perform in the toughest conditions.
• Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
• Optional multiple compressor control (2, 4 or 6 compressors).

 10.VSD+ Neos cubicle

• VSD+ is superior to idling machines.
• Electrical components remain cool, enhancing theirlifetime.
• Dedicated Neos drive for iPM technology motors.
• Heat dissipation of inverter in separate compartmen

Flow chart GA 75L-110 VSD+

Flow chart GA 75L-110 VSD+
Flow chart GA 75L-110 VSD+

Technical specifications GA 75L-110 VSD+

Compressor type Max. working pressure Capacity FAD* (min-max) Installed motor power Noise level** Weight WorkPlace Weight WorkPlace Full Feature
bar(e) psig l/s m³/h cfm kW hp dB(A) kg kg
GA75LVSD* 4 58 47-269 169-967 100-569 75 100 73 1207 1496
7 102 48-266 172-957 101-563 75 100 73 1207 1496
9.5 138 58-235 210-847 124-498 75 100 73 1207 1496
12.5 181 70-194 252-699 149-411 75 100 73 1207 1496
GA90VSD* 4 58 48-311 174-1121 102-660 90 125 74 1213 1503
7 102 49-306 176-1101 104-548 90 125 74 1213 1503
9.5 138 60-269 215-969 127-570 90 125 74 1213 1503
12.5 181 71-218 255-784 150-461 90 125 74 1213 1503
GA110VSD* 4 58 47-348 170-1251 100-736 110 150 76 1222 1573
7 102 49-345 175-1241 103-731 110 150 76 1222 1573
9.5 138 59-309 211-1111 124-554 110 150 76 1222 1573
12.5 181 71-268 254-965 150-568 110 150 76 1222 1573

* Unit performance measured according ISO 1217 ed. 4 2009, annex E, latest edition.

** Mean noise level measured at a distance of 1 m at max. working pressure according to ISO 2151: 2004 using ISO 9614/2 (sound intensity method); tolerance 3 dB(A).

***This model is part of the GA 7-37 VSD+ range, a different series with different specifications.FAD is measured at the following effective working pressures:
– 4 bar(e)
– 7 bar(e)
– 9.5 bar(e)
– 12.5 bar(e)

Maximum working pressure:
13 bar(e) (188 psig)

Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C/68°F.

Options

  • Energy recovery
  • UD+ filter
  • RXD oil
  • ES4i, ES6i

Dimensions GA 37-110 VSD⁺

Dimensions Standard Full Feature
D (mm) W (mm) H (mm) D (in) W (in) H (in) D (mm) W (mm) H (mm) D (in) W (in) H (in)
GA 75L-110 VSD+ 1400 1300 1968 55.12 51.18 77.48 2178 1300 1968 85.75 51.18 77.48

Brochure

If you need Atlas Copco GA75L-110 VSD⁺ Oil-injected Air Compressors brochure, please click the link below to view or download it.

Atlas Copco GA75L-110 VSD+ Oil-injected Air Compressors

Inquiry Now

Contact Form Demo

Weight 1000.00 kg
Dimensions 140 × 130 × 200 cm
Working pressure

4 bar(g) – 13 bar(g)
Free air delivery

169 m³/h – 1251 m³/h
Installed motor power

75 kW – 110 kW
Capacity FAD l/s

47 l/s – 348 l/s
Country of Origin

CN
Lead Time

30-45Days
MOQ

1 Unit
Packaging

Wooden Crate
Product Quality

100% Genuine, 100% Original, Brand New
Transaction Mode

CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
