BLT 75-350 (55-250kW) A L VFC Air Compressors
$5,000.00
In response to market demand, Bolaite has launched the new BLT 75-350 (55-250kW) A L VFC Air Compressors series (75,100,120,150,175,200,250,275,350) —a line of low-pressure, variable-frequency drive screw compressors—striving to be a long-term, stable, and responsible business partner to its customers and collaborators. This aligns with Bolaite’s brand promise: “Better life together.”
Working pressure
3.5 - 5.5 bar
FAD
4.9 - 55 m³/min
Outlet Size
DN100 - DN125
Country of Origin
CN
HS Code
8414804100
Lead Time
2-4 Weeks
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
In response to market demand, Bolaite has launched the new BLT 75-350 (55–250 kW) A L VFC air compressors series—a line of low-pressure, variable-frequency drive screw compressors—striving to be a long-term, stable, and responsible business partner to its customers and collaborators. This aligns with Bolaite’s brand promise: “Better life together.”
BLT 75-350 (55-250kW) A L VFC Air Compressors Advantages

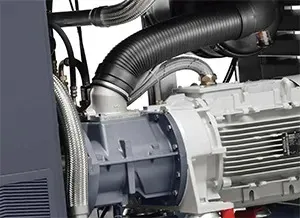

Installed with high quality Atlas Copco airend(screw element)The heart of the compressor-airend(screw element) is installed with Atlas Copco. With Atlas Copco high quality and high-performance airend, Bolaite air compressor could keep your compressed air system running efficiently, effectively and operating at full capacity. |
 |
 |
Strictly Follows European Industrial Design and Testing StandardsFollowing Atlas Copco’s excellent design capability and abundant experience for air compressors, Bolaite compressor keeping the best balance between performance and cost. The strict development process and testing standards which have been formed with reference to the Atlas Copco’s experience accumulated over decades, ensure reliable quality of every Bolaite air compressor. |
ISO International Standard Quality Management SystemBolaite air compressors are kept in strict conformity with the ISO9001, ISO14001 and OHSAS18001 standards from design, manufacturing to assembly, so as to ensure stable operation of the compressor, and thus the interests of the user in the long run. Benefiting from the Atlas Copco’s history and technical experience for over 140 years, and designed specifically for the variety of complex climates and poor working conditions in China, every Bolaite air compressor provides the best quality assurance. |
 |
BLT 75-350 (55-250kW) A L VFC Air Compressors Technical Specifications
| Model | Max. pressure | Capacity FAD | Motor power | Noise level | Weight | Air outlet size | Dimensions (mm) |
| bar(e) | m3/min | kW | dB(A) | kg | LxWxH | ||
| BLT-75AG L VFC | 5 | 4.9-12.9 | 55 | 75 | 2840 | DN100 | 2845x1750x1930 |
| BLT-100AG L VFC | 5 | 7.1-17.9 | 75 | 75 | 3140 | DN100 | 2845x1750x1930 |
| BLT-120A L VFC | 5 | 9-22.7 | 90 | 75 | 3280 | DN100 | 2845x1750x1930 |
| BLT-150A L VFC | 5 | 10.7-25.9 | 110 | 77 | 3350 | DN100 | 2845x1750x1930 |
| BLT-175A L VFC | 5 | 12-29.5 | 132 | 77 | 3350 | DN100 | 2845x1750x1930 |
| BLT-200A L VFC | 5 | 14.9-37.3 | 160 | 78 | 4500 | DN125 | 4800x2150x2250 |
| BLT-250A L VFC | 5 | 15.7-43.2 | 180 | 78 | 5000 | DN125 | 4800x2150x2250 |
| BLT-275A L VFC | 5 | 18.1-47.3 | 200 | 78 | 5525 | DN125 | 4800x2150x2250 |
| BLT-350A L VFC | 5 | 21-55 | 250 | 78 | 6095 | DN125 | 4800x2150x2250 |
Note: All the above products can operate under a pressure range of 3.5–5.5 bar.
Inquiry Now
| Weight | 3000.00 kg |
|---|---|
| Dimensions | 300 × 190 × 200 cm |
| Working pressure | 3.5 – 5.5 bar |
| FAD | 4.9 – 55 m³/min |
| Outlet Size | DN100 – DN125 |
| Country of Origin | CN |
| HS Code | 8414804100 |
| Lead Time | 2-4 Weeks |
| MOQ | 1 Unit |
| Packaging | Wooden Crate |
| Product Quality | 100% Genuine, 100% Original, Brand New |
| Transaction Mode | CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA |
1 review for BLT 75-350 (55-250kW) A L VFC Air Compressors
Add a review
Evas –
Rock-Solid Reliability for Heavy-Duty Industrial Use
The BLT-250 A L VFC has been running continuously in our glass manufacturing plant for over a year without a single unplanned downtime. The build quality is outstanding — the Atlas Copco main unit, SKF heavy-duty bearings, and high-rigidity rotor design give us complete confidence in its durability. The oversized oil cooler prevents overheating even during peak summer months, and the optimized oil separation system keeps oil carryover below 2 ppm. The integrated intelligent control system with fault alarms and maintenance reminders makes operation effortless. If you need a dependable low-pressure screw air compressor for demanding industrial environments, this is the one.
