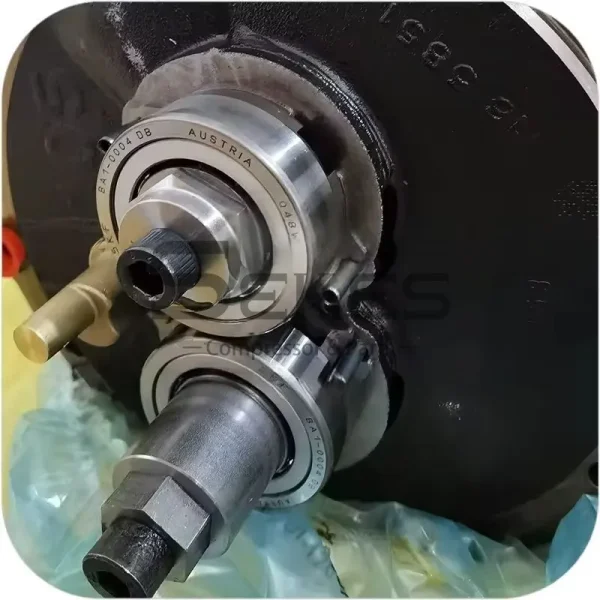

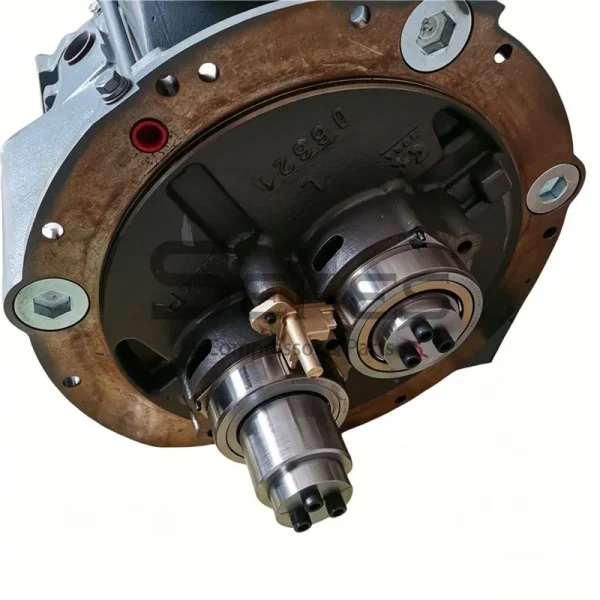

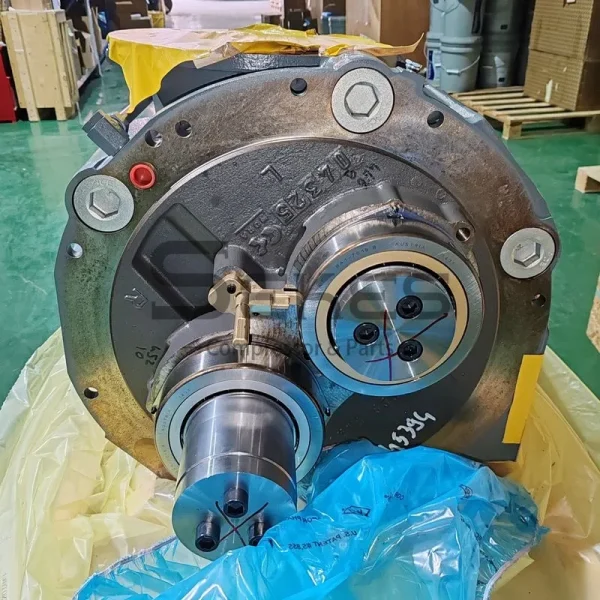

1616716287 (=1616635688): OFS Q-27

In the demanding world of industrial compressed air, precision and reliability are non-negotiable. The Atlas Copco 1616716287 OFS Q-27 air end stands as a pinnacle of engineering excellence, specifically designed for high-performance oil-free screw compressor systems. This heavy-duty component ensures that your operations maintain the highest air quality standards while maximizing energy efficiency and long-term durability. Manufactured with rigorous standards in Belgium, the OFS Q-27 represents the core of Atlas Copco’s world-leading oil-free technology.

Product Introduction

The 1616716287 air end is a vital air compressor head for Atlas Copco oil-free compressors. These systems are essential in industries where even the slightest trace of oil contamination can lead to catastrophic product spoilage, health risks, or equipment damage—such as in pharmaceutical manufacturing, food and beverage processing, and sensitive electronics production. The OFS Q-27 utilizes advanced rotary tooth technology to provide consistent, high-volume airflow without the need for oil lubrication within the compression chamber.

This specific model, the OFS Q-27, is a genuine replacement part that supersedes the older 1616635688 model, incorporating the latest design improvements for better thermal management and reduced vibration. Sourced directly through the authorized supply chain of Atlas Copco (Shanghai) Trading Co., Ltd., this unit is guaranteed to be a brand-new, original product. We supply original air compressor components to global industrial leaders who refuse to compromise on authenticity.

Product Parameters

Understanding the physical and logistical parameters of the OFS Q-27 is crucial for seamless integration and maintenance planning. The following table outlines the key technical data for the 1616716287 air end.

Parameter	Details
Part Name	OFS. Q-27
Part Number	1616716287
Superseded Number	1616635688
Country of Origin	Belgium (BE)
Tariff Code	8414900090
Dimensions (L x W x H)	124 cm x 84 cm x 74 cm
Weight	890.00 kg
Stock Policy	Stocked
Price (excl. VAT)	$75,000.00 excl. VAT

Product Advantages

Investing in a genuine Atlas Copco OFS Q-27 air end provides several strategic benefits that generic alternatives simply cannot match:

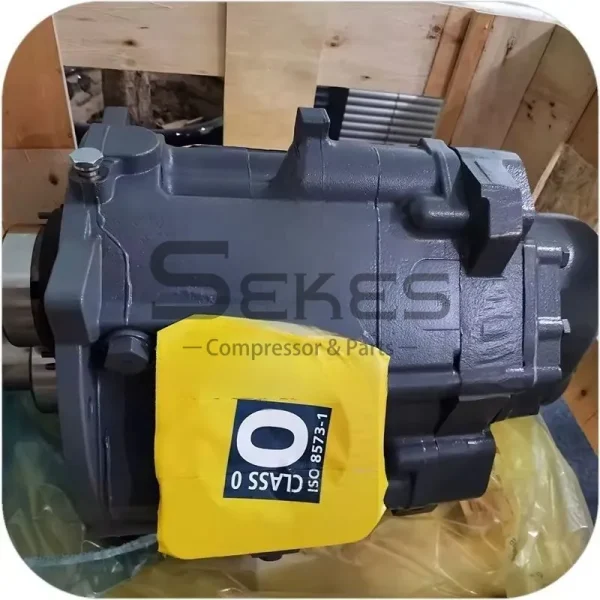

100% Certified Oil-Free Air: The OFS series ensures zero risk of oil contamination in your process air, meeting the most stringent ISO 8573-1 Class 0 certifications.

European Manufacturing Excellence: Produced in Atlas Copco’s state-of-the-art facility in Belgium, this air end benefits from advanced metallurgical processes and precision machining that extend the component’s service life.

Optimized Energy Efficiency: The rotor profile of the 1616716287 is engineered to minimize internal leakage and friction, significantly reducing the energy required for compression.

Exact Fitment and Compatibility: As a genuine air compressor component, it fits perfectly into existing Atlas Copco oil-free air compressors, eliminating the need for modifications and reducing labor costs during replacement.

Installation Steps

Because the OFS Q-27 is a high-precision, heavy-duty component weighing 890 kg, installation must be performed by certified technicians. Follow these general steps to ensure a successful swap:

• Step 1 – Preparation: Secure the workspace and ensure proper lifting equipment (rated for at least 1,500 kg) is available. Disconnect all power and air pressure from the compressor system.
• Step 2 – Removal: Carefully disconnect the drive motor, air piping, and sensors from the existing air end. Support the unit securely before loosening the mounting bolts.
• Step 3 – Unpacking: Inspect the brand-new 1616716287 unit for any transport damage. Keep it in its original packaging until the moment of installation to prevent dust or debris from entering the intake.
• Step 4 – Mounting: Align the new air end precisely with the drive coupling and mounting base. Torque the bolts to Atlas Copco’s factory specifications to prevent operational vibration.
• Step 5 – Integration: Reconnect all service lines and sensors. Ensure the lubrication system for the gear drive (separate from the compression chamber) is filled with the correct Atlas Copco genuine lubricant.
• Step 6 – Testing: Perform a supervised startup, monitoring temperatures, pressures, and vibration levels for the first 24 hours of operation.

Operational Precautions

To protect your $75,000 investment, adhere strictly to the following precautions:

• Filtration is Key: Always replace air intake filters when installing a new air end. Microscopic dust particles can damage the precision-coated rotors.
• Avoid Counterfeit Parts: Using non-genuine filters, gaskets, or lubricants will lead to premature failure and immediate cancellation of warranty claims.
• Environment Control: Ensure the compressor room is well-ventilated. Excessive heat can degrade the air end’s internal coatings and bearings.
• Professional Handling: Never attempt to disassemble the air end assembly yourself. These units are factory-sealed and balanced to exacting tolerances.

Quality Assurance & Warranty

We supply this product with full transparency and manufacturer backing. Every OFS Q-27 (1616716287) comes with clear product identification and original factory packaging. According to Atlas Copco’s global standards, this product carries a 12-month warranty against design or production defects. This warranty provides buyers with confidence in both the component’s immediate performance and the long-term after-sales support provided by the authorized supply chain.

Please note: Warranty coverage excludes issues arising from misuse, improper installation, or normal wear and tear. Use of anything other than Atlas Copco genuine spare parts in the system will lead to the cancellation of any warranty claims.

Ready to Restore Your System’s Peak Performance?

Don’t compromise your production with inferior alternatives. The Atlas Copco OFS Q-27 (1616716287) is a critical investment in your facility’s future. As a trusted supplier, we guarantee that every air end we deliver is a 100% genuine, brand-new product sourced directly through the official Atlas Copco (Shanghai) supply chain.

• Avoid Costly Downtime: Secure your stock today.
• Guaranteed Authenticity: Original packaging and full traceability.
• Expert Support: Our technical team is ready to assist with your configuration.
• Contact us now for a personalized quote and technical consultation!

Customer Reviews

Review by Marcus T., Operations Manager:

“We recently replaced our aging unit with this genuine OFS Q-27 air end from ACD. The performance difference is remarkable. As a high-precision pharmaceutical plant, we cannot risk contamination. This authentic Atlas Copco part ensures 100% oil-free air. Excellent support and fast shipping from the team! Highly recommended for critical industrial applications.”

Review by Elena V., Maintenance Engineer:

“The 1616716287 air end arrived in perfect original packaging. Sourced through Atlas Copco Shanghai, its authenticity was clear from the start. Installation was seamless thanks to the precise dimensions. We’ve seen a 15% improvement in compression efficiency since the swap. Investing in genuine parts like this is essential for long-term reliability and peace of mind.”

Review by Jason L., Procurement Lead:

“ACD provided exceptional service for our oil-free system overhaul. The OFS Q-27 is a heavy-duty beast, but its Belgium-made quality shines through in its smooth operation. Knowing this is a brand-new, original part directly from the authorized supply chain makes a huge difference for our warranty compliance. A top-tier component for serious air systems.”

Trusted Sources

We maintain a strict “100% brand new, genuine and original” policy for critical components. This product is procured directly from Atlas Copco (Shanghai) Trading Co., Ltd., ensuring it is a 100% original, brand-new genuine part. For further verification and technical depth, consult the following authoritative sources:

Atlas Copco Global Industrial Technique Documentation.

ISO 8573-1:2010 Compressed Air Quality Standards.

More Oil-free Air Ends List

Part Number	Part Name	Order Number
1616635681	O.F.S. Q-21	1616-6356-81
1616635682	O.F.S. Q-22	1616-6356-82
1616635683	STAGE 6 GAS	1616-6356-83
1616635688	OFS Q-21	1616-6356-88
1616716287	O.F.S. Q-27	1616-7162-87
1616630581	O.F.S. O-21	1616-6305-81
1616630582	O.F.S. O-22	1616-6305-82
1616630583	COMPR.ELEMENT	1616-6305-83
1616630588	OFS O-21	1616-6305-88
1616716187	O.F.S. O-27	1616-7161-87
1616590461	O.F.S. M-25	1616-5904-61
1616590463	O.F.S. M-26	1616-5904-63
9825008481	O.F.S. M-21	9825-0084-81
1616590481	O.F.S. M-21	1616-5904-81
1616590482	O.F.S. M-22	1616-5904-82
1616590483	O.F.S. M-23	1616-5904-83
1616590488	OFS M-28	1616-5904-88
1616718787	OFS M-27	1616-7187-87
1616580381	O.F.S. K-21	1616-5803-81
1616580382	O.F.S. K-22	1616-5803-82
1616580383	O.F.S. K-23	1616-5803-83
1616580388	O.F.S. K-28	1616-5803-88
1616718687	O.F.S. K-27	1616-5803-87
1616719480	O.I.S. K-38	1616-7194-90
1616679281	O.F.S. I-41	1616-6792-81
1616747281	O.F.S. I-41	1616-7472-81
1616747282	O.F.S. I-42	1616-7472-82
1616747283	OFS I-02 GAS	1616-7472-83
1616747287	O.F.S. I-47	1616-7472-87
1616679288	O.F.S. I-48	1616-6792-88
1616747288	O.F.S. I-48	1616-7472-88
1616585181	O.F.S. G-21	1616-5851-81
1616585182	O.F.S. G-22	1616-5851-82
1616585183	O.F.S. G-23	1616-5851-83
1616585187	O.F.S. G-27	1616-5851-87
1616677081	ELEMENT COMPR	1616-6770-81
1616677082	O.F.S. E-22	1616-6770-82
1616677083	ELEMENT COMPR	1616-6770-83
1632002980	ELEMENT COMPR Z4 O.F.S.	1632-0029-80
1616550181	O.F.T. K-01	1616-5501-81
1616652781	O.F.T. I-01	1616-6527-81
1616855161	O.F.S. K-25	1616-8551-61
1616710781	OFT E-11	1616-7107-81
1616777381	ELEMENT COMPR	1616-7773-81
1616988381	OFS J-51	1616-9883-81
1616947181	ELEMENT COMPR	1616-9471-81
2236050100	AIR END ATSL-165E 3.7KW 8BAR	2902022201
2236050200	AIR END ATSL-165E 3.7KW 10BAR	2902022202
1616741883	ELEMENT 5.5KW 8 BAR OFSL/E03	2902022204
1616833682	AIREND OFSL D-02/3,7KW-10BAR	2902022211
